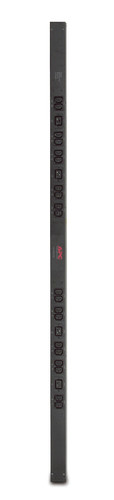

Apc Basic Rack Pdu. Pdu Types: Basic Rack Capacity: 0U Mounting: Vertical. Ac Ou AP7554

APC Basic Rack PDU. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A. Cable length: 3.05 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Load capacity: 3680 VA. Certification: CCC, CE, VDE APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment. - Single input power source. - Toolless Mounting Capabilities. - Vertical Mounting Capabilities.
Miscellaneous

Additional InformationSingle Input Power Source
Toolless Mounting Capabilities
Vertical Mounting Capabilities

Package ContentsBasic Rack 3680VA PDU
Installation Guide
Rack Mounting Brackets
Toolless Mounting Kit

Certifications & StandardsCCC
CE
VDE


Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Power Rating (VA)3.68 kVA

General Information

Product TypePDU
Manufacturer Part NumberAP7554
Manufacturer Website Address schneider-electric
Packaged Quantity1 Each
ManufacturerSchneider Electric SA
Product NameBasic Rack 3680VA PDU
Product LineNetShelter
Product SeriesBasic
Brand NameAPC by Schneider Electric


Technical Information

Plug/Connector TypeIEC 60309 16A
Receptacle TypeIEC 60320 C13
IEC 60320 C19
PDU TypeBasic
Receptacle Detail20 x IEC 60320 C13
4 x IEC 60320 C19

Physical Characteristics

Weight (Approximate)5.56 kg
Mount TypeRack-mountable
Cord Length3.05 m
Height1619.3 mm
Width55.6 mm
Depth43.9 mm
Product ColorBlack
Color FamilyBlack
