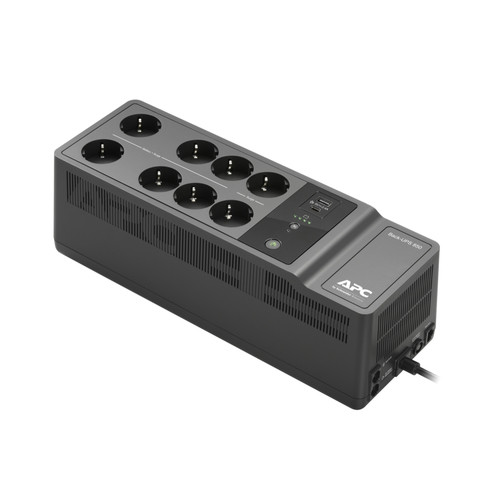

Apc BE850G2-IT. Ups Topology: Standby Offline Output Power Capacity: 0.85 Kva Ou BE850G2-IT

APC BE850G2-IT. UPS topology: Standby (Offline), Output power capacity: 0.85 kVA, Output power: 520 W. AC outlet types: Type F, USB port type: USB Type-C, Cabling technology: 10/100Base-T. Battery life (max): 5 year(s), Battery recharge time: 16 h. Form factor: Compact, Product colour: Black, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: CE, EAC Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Audible alarms Provides notification of changing utility power and UPS power conditions Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery charging indicator Lets you know when your battery is charging and when it is fully charged. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit. Cold-start capable Provides temporary battery power when the utility power is out. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. Disconnected battery notification Warns when a battery is not available to provide backup power. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Simple battery replacement Increases UPS availability by allowing quick, easy battery replacement. USB charging ports Simultaneously charge mobile devices, including smartphones and tablets. USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port. User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Controls/Indicators

Status Indicators
LED Status Display:On Line
On Battery
Replace Battery
Overload


Miscellaneous

Environmentally FriendlyYes

Interfaces/Ports

Network (RJ-45)Yes
USB (HID Compliant) PortYes

Environmental Conditions

Maximum Operating Temperature40??C
Maximum Operating Elevation900 m
Maximum Storage Elevation4.50 km
Sound Emission (A-Weighted)45 dB(A)

Management

AlarmUPS Power Condition
Low Battery
Changing Utility Power
Overload
On Battery

Physical Characteristics

Weight (Approximate)4.50 kg
Form FactorTower
Height120 mm
Width130 mm
Depth365 mm

Technical Information

Application/UsageElectronic
Gaming Console
Home
Network
Business
Computer
Dataline ProtectionRJ-11
RJ-45
Plug/Connector TypeItalian CEI 23-16
Receptacle TypeUSB Type C
USB Type A
Schuko CEE 7
Transfer Time6 ms
Receptacle Detail8 x Schuko CEE 7


General Information

Product TypeStandby UPS
Manufacturer Part NumberBE850G2-IT
schneider-electric
ManufacturerSchneider Electric SA
Product NameBack-UPS 850VA, 230V, USB Type-C And A Charging Ports
Product LineBack-UPS
Brand NameAPC by Schneider Electric

Battery Information

Battery ChemistryLead Acid
Hot SwappableYes
Battery Energy334.8 kJ
Backup/Run Time (Half Load)9.80 Minute
Backup/Run Time (Full Load)2.30 Minute
Battery CharacteristicsMaintenance-free, Sealed, Leak-proof
Replaceable BatteryYes
Typical Battery Recharge Time16 Hour

Power Description

Input Voltage230 V AC
Output Voltage230 V AC
220 V AC
Surge Energy Rating310 J
Waveform TypeStepped Approximated Sine Wave
Output Frequency63 Hz
Input Frequency63 Hz
Load Capacity (VA)850 VA
Load Capacity (Watt)520 W
