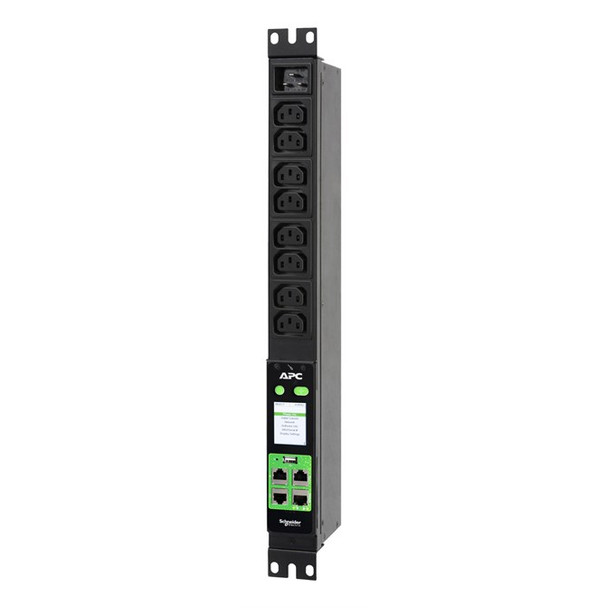

APC Easy Rack PDU Metered Outlet 0U 3 Phase 11kW 230V 16A 18 C13 and 6 C19 outle EPDU2016M

Schneider Easy Metered Rack PDU EPDU2016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5- to +50-C temperation range and comes with 2 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Specs




Design


PDU types

A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.

Metered


Type

Characteristics of the device.

Single-phase


Rack capacity

The spase that device fill in rack.

1U


Mounting

What size the mounting head of the product is, to couple it with a camera.

Vertical


Product colour

The colour e.g. red, blue, green, black, white.

Black


Ports & interfaces


AC outlets quantity

The number of sockets in the device where AC electrical power can be connected.

8 AC outlet(s)


Power plug

A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.

C13 coupler


AC outlet types

The type of outlet for AC electricity.

C13 coupler


Power


Nominal input voltage

The voltage which the manufacturer recommends that the device needs to operate normally.

230 V


AC input frequency

50/60 Hz


Maximum current

The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
A


Nominal output voltage

The voltage which the manufacturer states that the device can produce.
8 V


Output voltage
8 V


Load capacity

3680 VA


Number of phases

1


Certificates


Compliance certificates

CE, UKCA



Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-5 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-25 - 65 -C


Operating relative humidity (H-H)

5 - 95%


Storage relative humidity (H-H)

5 - 95%


Operating altitude

0 - 3000 m


Weight & dimensions


Width

The measurement or extent of something from side to side.

482 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

44 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.7 kg


Packaging data


Package weight

Weight of the packaged product.

3 kg


Package width

The distance from one side of the packaging to the other.

210 mm


Package depth

The distance from the front to the back of the packaging.

570 mm


Package height

The distance from the top to the bottom of the packaging.

680 mm


Logistics data


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

649
