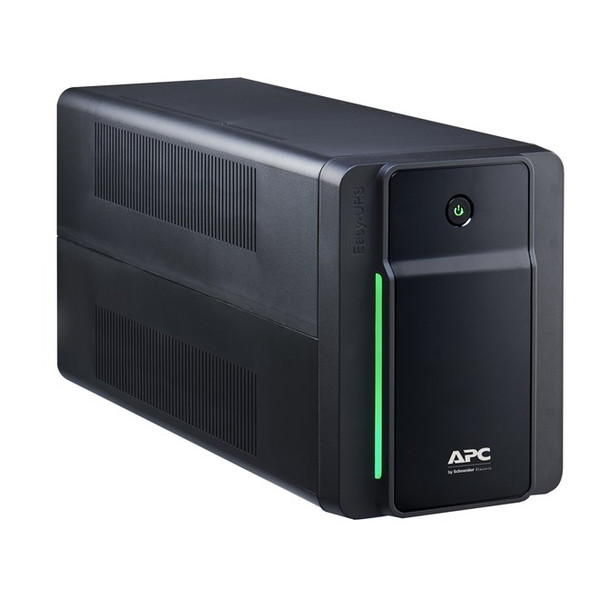

Apc Easy Ups. Ups Topology: Line-Interactive Output Power Capacity: 1.6 Kva Outp BVX1600LI

APC Easy UPS. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 900 W. AC outlet types: C14 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery recharge time: 6 h. Product colour: Black, Cable length: 1.2 m. Certification: CB , CE, EN/IEC 62040-1, EN/IEC 62040-2 Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Cold-start capable Provides temporary battery power when the utility power is out. Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home d?�cor. Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles. LED Indicators Provide easy-to-read status of the unit and utility power conditions. Audible alarms Provides notification of changing utility power and UPS power conditions. Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Controls/Indicators

Status Indicators
LED Status Display:On Line
On Battery


Management

AlarmOn Battery
Low Battery

Environmental Conditions

Maximum Operating Temperature40??C
Maximum Operating Elevation3 km
Maximum Storage Elevation3 km
Sound Emission (A-Weighted)40 dB(A)

Battery Information

Battery ChemistryLead Acid
Battery Size12V
Battery Energy446.4 kJ
Backup/Run Time (Half Load)6.10 Minute
Backup/Run Time (Full Load)36 Second
Typical Battery Recharge Time8 Hour

Technical Information

Application/UsageOffice
Network Gateway Device
Home
Critical Low-power Device
Computer
Overload ProtectionYes
Plug/Connector TypeIEC 60320 C14
Receptacle TypeIEC 60320 C13
AVRYes
Transfer Time6 ms
Receptacle Detail6 x IEC 60320 C13


Physical Characteristics

Weight (Approximate)10.20 kg
Form FactorWall Mountable
Height190 mm
Width140 mm
Depth390 mm
Color FamilyBlack

General Information

Product TypeStandby UPS
Manufacturer Part NumberBVX1600LI
schneider-electric
ManufacturerSchneider Electric SA
Product NameEasy UPS BVX 1.6kVA Wall Mountable UPS
Product LineEasy UPS
Product SeriesBVX
Brand NameAPC by Schneider Electric

Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Surge Energy Rating273 J
Waveform TypeStepped Approximated Sine Wave
Input Voltage Range140 V AC - 300 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)1.60 kVA
Load Capacity (Watt)900 W
