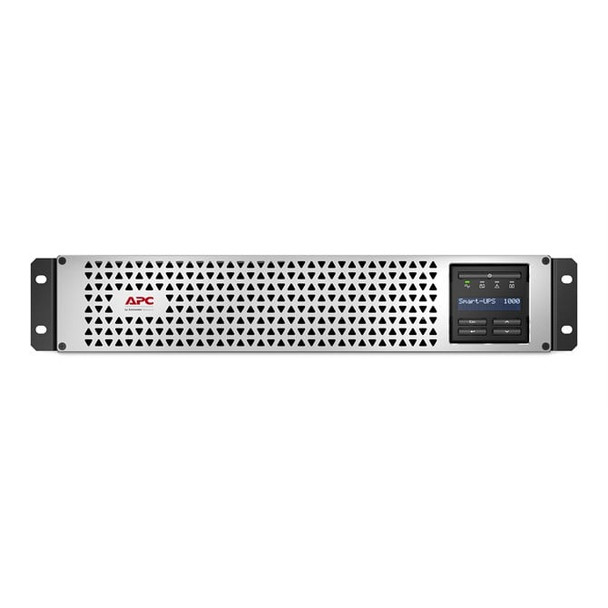

Apc Smart-Ups Li-Ion SMTL1000RMI2UC 6X C13 Short Depth Rackmount 2U Smartconnect SMTL1000RMI2UC

APC Smart-UPS Li-ion SMTL1000RMI2UC - 6x C13, Short Depth, Rackmount 2U, SmartConnect, 1000VA. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Lithium Iron Phosphate (LiFePO4). Form factor: Rackmount, Product colour: Grey, Rack capacity: 2U. Width: 438 mm, Depth: 318 mm, Height: 86 mm Always stay online and prevent data loss As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware. Safety In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use. Lithium-Ion The APC SMTL1000RMI2UC uses a Li-Ion (LiFePO4) battery, which provides unique advantages: - Longer lifespan. A Li-Ion battery can last up to 10 years and therefore makes the UPS truly maintenance-free. - Can handle more than 10x as many charge cycles as a lead acid battery (VRLA). - Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 65% ------less than VRLA batteries, which saves space and simplifies installation. - Better battery performance than VRLA at ambient temperatures above 25?? C. With VRLA, this is at the expense of battery life (>5% decrease per degree increase). - 5-year factory warranty. Standard long warranty on the UPS including the battery. - Eliminate the costs of interim battery replacement; labor, material, shipping and recycling. - Lower TCO: The above advantages reduce the total costs over the entire life of the UPS by up to 47% (compared to a UPS with VRLA battery.) - Faster charging means full protection sooner. - Perfect for tight spaces, due to the limited depth of the UPS it fits easily in wall racks and small cabinets. SmartConnect Out-of-box remote UPS monitoring, free for a 6-month trial period. Using the SmartConnect Ethernet port, you can easily connect the Smart-UPS to your network and monitor it remotely via the secure APC SmartConnect cloud-based web portal*. In addition, the UPS can always be monitored via this port via EcoStruxure IT Expert (SWITE1YR-DIGI). * Extend access to SmartConnect via the following licenses:1 year Standard Plan: ERWPMON1-1Y-DIGI 3 year Standard Plan: ERWPMON1-3Y-DIGI 1 year Advanced Plan: ERWPLUS1-1Y-DIGI 3 year Advanced Plan: ERWPLUS1-3Y-DIGI Network Management Card If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SWITE1YR-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, the shutdown moment and the order in which this happens can even be differentiated. Ease of use By means of physical buttons and an LCD screen it is possible to set and read the basic functionalities. Battery life You can easily read the expected battery life in the runtime graph, which you can find between the product images. This way you can easily see how long the UPS will supply emergency power at a certain load. Mounting The UPS is equipped with mounting brackets with which you can easily mount it to the front posts in a 19 inch rack, wall or patch cabinet due to its limited depth. By means of the optional SMTL2USF stabilization feet the UPS can also be placed vertically, i.e. upright. Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS
Controls/Indicators

Status Indicators
LED Status Indicators:
Quickly understand unit and power status with visual indicators.


Interfaces/Ports

Network (RJ-45)Yes
Serial PortYes
USB (HID Compliant) PortYes

Management

AlarmConfigurable Delay
Low Battery
On Battery

Environmental Conditions

Thermal Dissipation70 BTU/h
Maximum Operating Temperature40??C
Maximum Operating Elevation3.05 km
Maximum Storage Elevation7.62 km
Sound Emission (A-Weighted)41 dB(A)

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Hot SwappableYes
Backup/Run Time (Half Load)19 Minute
Backup/Run Time (Full Load)8 Minute
Replaceable BatteryYes
Typical Battery Recharge Time3 Hour

General Information

Product TypeLine-interactive UPS
Manufacturer Part NumberSMTL1000RMI2UC
schneider-electric
ManufacturerSchneider Electric SA
Product NameSmart-UPS 1000VA Rach-mountable UPS
Product LineSmart-UPS
Product SeriesSMT
Brand NameAPC by Schneider Electric

Miscellaneous

Environmentally FriendlyYes
Mercury FreeYes
For Country/RegionUnited States
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Information download.schneider-electric/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL1000RMI2UC_ROHS_DECLARATION&p_FileName=SMTL1000RMI2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301634&lang=en-us
EU RoHS Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=export&pid=557301634&lang=en-us
Environmental Profile Availability download.schneider-electric/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001EN
End of Life Manual Availability download.schneider-electric/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHCNo
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)


Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Surge Energy Rating680 J
Waveform TypeSine Wave
Input Voltage Range160 V AC - 280 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)800 W

Physical Characteristics

Weight (Approximate)16.30 kg
Form FactorRack-mountable
Rack Height2U
Height86 mm
Width438 mm
Depth318 mm
Product ColorSilver
Black
Color FamilyDual Colour
Mounting PreferenceLower

Technical Information

Application/UsageSwitch
Router
Rack Server
Network Device
Network Hub
POS Terminal
Overload ProtectionYes
Plug/Connector TypeIEC 60320 C14
PhaseSingle Phase
Receptacle TypeIEC 60320 C13
IEC Jumper
AVRYes
Number of Battery & Surge Outlets6
Transfer Time6 ms
Receptacle Detail6 x IEC 60320 C13
