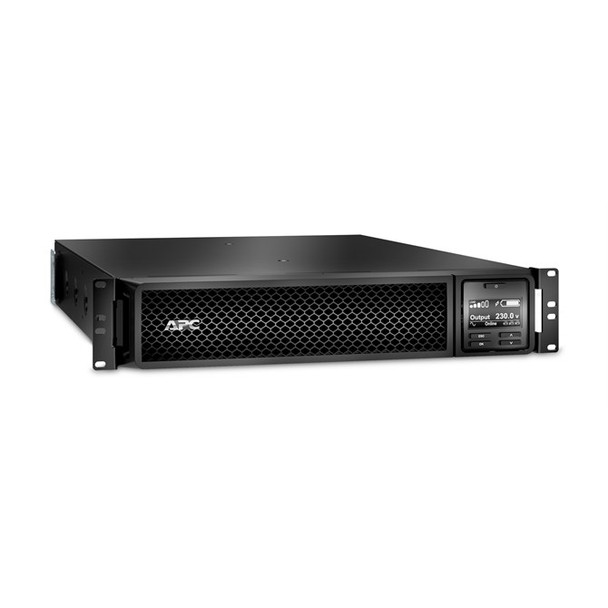

APC Smart-UPS On-Line SRT uninterruptible power supply UPS Double-conversion Onl SRT3000RMXLI-NC

Stay always online and prevent data loss
An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a PC, server, storage or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SRT3000RMXLI-NC can independently supply emergency power by connecting external battery packs (SRT96RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, maximizing the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency power generator. The Un-
Line double conversion technology ensures clean, uninterrupted power to protected equipment even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Ease of use
The APC Smart-UPS SRT is easy to operate thanks to a tilting graphic LCD screen and physical buttons. This makes it possible to set and read the basic functionalities. Because the background color of the screen changes depending on the type of warning, the severity of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.

Manage your Smart-UPS
Thanks to the pre-installed APC Network Management Card (AP9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.

*An additional license is required for HCI and virtual machine support:1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI

Remote management and monitoring of your network
The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure- IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure- IT also includes the functionalities of the support contract below.

Support contract
The optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:- New and improved features
- Security updates
- Advanced support

*The above license is available in the variants:1 year: SWNMC3SU-1Y-DIGI
3 years: SWNMC3SU-3Y-DIGI
5 years: SWNMC3SU-5Y-DIGI

Extend the lifespan
The internal battery cartridge (APCRBC152) can be replaced easily, safely and independently by the user. This without having to switch off the APC SRT3000RMXLI-NC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The manufacturer's warranty of the SRT3000RMXLI-NC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.

It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You also cannot eliminate critical loads; This way you extend the runtime for critical equipment.

Green Premium
This label is Schneider Electric's commitment to products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.

Green Premium:- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.

- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see checkaproduct.se /

- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)

Included in the box
1x SRT3000RMXLI-NC
1x USB cable
1x C13 to C14 power cord 1.2M
1x Software CD with Powershute Network Shutdown Edition
1x Documentation CD
1x Schuko to C19 input power cord 2M
1x British BS1363A to C19 input power cord
1x C19 to C20 input power cord 2.5M
2x Rackmount mounting brackets
1x Temperature sensor

Specs




Features


UPS topology

The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.

Double-conversion (Online)


Output power capacity

The maximum power that the device can produce.

3 kVA


Output power

The power that the device can produce.

2700 W


Waveform

Sine


Input operation voltage (min)

The minumum voltage needed by the device during operation.
0 V


Input operation voltage (max)

The maximum input voltage supported by the device.

275 V


Input frequency

The frequency (Hz) which is required to power the product.

40 - 70 Hz


Output operation voltage (min)

The minumum voltage produced by the device during operation.

220 V


Output operation voltage (max)

The maximum output voltage produced by the device.

240 V


Output frequency

50/60 Hz


Automatic Voltage Regulation (AVR)




Surge energy rating

A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure.

340 J


Efficiency

92%


Crest factor

3:1


Emergency Power Off (EPO)




Output voltage Total Harmonic Distortion (THD)

2%


Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).

55 dB


Surge protection




Power protection features

Features that protect the device against power problems e.g. overload.

Overload


Audible alarm(s)

Alarms that make a sound when they are activated (set off).




Audible alarm modes

Battery replacement


Auto-restart




Ports & interfaces


AC outlet types

The type of outlet for AC electricity.

C13 coupler, C19 coupler


Power plug

A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.

C20 coupler


USB port

The device features a socket into which a USB cable can be plugged.




Serial interface




Serial interface type

RJ-45


SmartSlot




Battery


Battery technology

The type of battery in the device, e.g. nickel-cadmium (NiCd).

Sealed Lead Acid (VRLA)


Battery capacity

505 VAh


Typical backup time at full load

The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity).

4 min


Typical backup time at half load

The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity).
.8 min


Battery life (max)

5 year(s)


Battery recharge time

Approximate time required to recharge the battery from completely empty to completely full

3 h



Battery


Hot-swap battery




Automatic battery test




Cold start




Design


Form factor

The shape or design of the product.

Rackmount


Rack capacity

The spase that device fill in rack.

2U


Cable length

How long the cable is.

2.44 m


Product colour

The colour e.g. red, blue, green, black, white.

Black


Display type

Type of display (screen) e.g. LCD.

LCD


LED indicators

Battery replacement


International Protection (IP) code

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP20


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-15 - 45 -C


Operating relative humidity (H-H)

0 - 95%


Storage relative humidity (H-H)

0 - 95%


Operating altitude

0 - 3000 m


Non-operating altitude

0 - 15000 m


Certificates


Compliance certificates

RoHS


Certification

CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA


Packaging content


Quick installation guide




Sustainability


Sustainability certificates

Green Premium


Weight & dimensions


Width

The measurement or extent of something from side to side.

432 mm


Depth

The distance from the front to the back of something.

635 mm


Height

The measurement of the product from head to foot or from base to top.

85 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

31.3 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

599 mm


Package depth

The distance from the front to the back of the packaging.

871 mm


Package height

The distance from the top to the bottom of the packaging.

246 mm


Package weight

Weight of the packaged product.

39.3 kg


Logistics data


Products per pallet

Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.

6 pc(s)


Harmonized System (HS) code

85078000


Total carbon footprint (kg of CO2e)

The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.

4988.41


Other features


Output voltage

230 V
