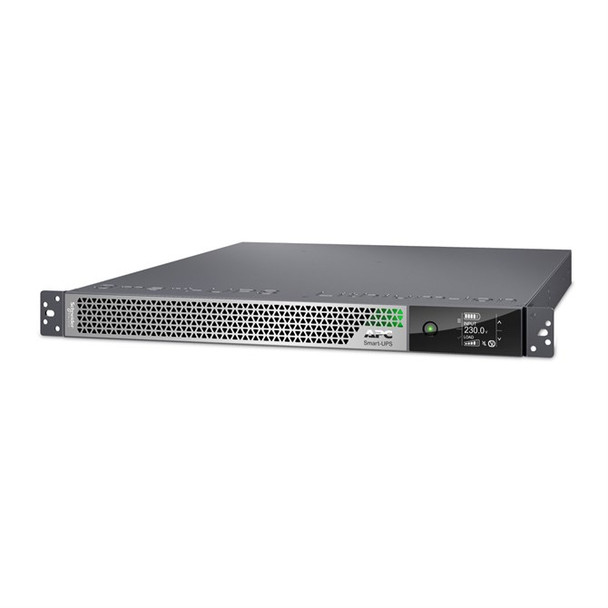

Apc Smart-Ups Ultra Li-Ion SRTL3KRM1UINC 3Kw 1U Rack/Tower/Wall 3X C13 & 2X C19 SRTL3KRM1UINC

APC Smart-UPS Ultra Li-Ion SRTL3KRM1UINC, 3KW, 1U Rack/Tower/Wall, 3x C13 & 2x C19, NMC. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Type F, AC outlets quantity: 5 AC outlet(s). Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 50 V, Battery recharge time: 1.5 h. Form factor: Rackmount, Product colour: Grey, Silver, Rack capacity: 1U. Compliance certificates: RoHS, Certification: CE Stay always online and prevent data loss An APC Smart-UPS Ultra On-Line Li-Ion always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power outages have no influence on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This way you prevent unwanted failure of, for example, a server, storage or switch. With the integrated network card and associated APC PowerChute Network Shutdown software, the UPS can send a shutdown signal via the network to multiple physical and/or virtual servers and have them shut down automatically and in a controlled manner when the UPS battery is almost empty. This way you prevent data loss, downtime and physical damage to hardware. Ultra Thanks to next-gen semiconductor technology, this APC Ultra UPS delivers 3000W in just a 1U form factor. Lithium-Ion The APC SRTL3KRM1UINC uses Li-Ion batteries, which provides unique advantages: -Longer life span. Li-Ion batteries can last up to 10 years, making the UPS truly maintenance-free. -Smaller and lighter. Li-Ion batteries are smaller and weigh approximately 30% less than lead acid batteries, saving space, 2U form factor and simplifying installation. -Better performance at high temperature. Li-Ion batteries perform well at high ambient temperatures (up to 40??C), in contrast to lead acid batteries where this is at the expense of battery life. -5 year manufacturer's warranty. Standard long warranty on the UPS including the battery. -Lower costs: The above benefits reduce the total costs over the entire lifespan of the UPS by up to 53% (compared to a UPS with lead-acid batteries.) Battery life You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load. Extend the runtime You can easily increase the number of minutes that the APC SRTL3KRM1UINC can independently supply emergency power by connecting up to 5 additional external battery packs (SRTL50RMBP1U-LI). A runtime of several hours is even possible. Manage your Smart-UPS Thanks to the integrated network card, you can easily connect the APC UPS to your network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on. *An additional license is required for HCI and virtual machine support: 1 year: SWPCNS1Y-DIGI Up to (Replace the bold number in the article number for the desired variant) 6 years: SWPCNS6Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure--- IT (SWITE1YR-DIGI) or another SNMP-compatible system. Tip EcoStruxure--- IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures that you are always up to date and secure and includes additional benefits such as frequent updates with:--- New and improved features --- Security updates --- Advanced support (The support contract functionality is included free of charge in the first year of the UPS) *The above license and available in the variants: 1 year: SWNMC3SU-1Y-DIGI<
Display & Graphics

DisplayLCD

Interfaces/Ports

USBYes

Management

Network ManagementNetwork Card

Warranty

Additional Warranty Information
5 years repair or replace


Environmental Conditions

Sound Emission55 dB
Maximum Operating Temperature40??C
Maximum Operating Elevation3.05 km
Maximum Storage Elevation15.24 km

Battery Information

Battery ChemistryLithium Ion (Li-Ion)
Battery Size50V
Battery Energy1209.6 kJ
Backup/Run Time (Half Load)10 Minute
Backup/Run Time (Full Load)4.60 Minute
Typical Battery Recharge Time1.50 Hour

General Information

Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRTL3KRM1UINC
schneider-electric
Packaged Quantity1
ManufacturerSchneider Electric SA
Product NameSmart-UPS Ultra 3000VA Rack-mountable UPS
Product LineSmart-UPS Ultra
Brand NameAPC by Schneider Electric

Technical Information

Application/UsageStorage
Voice/Data Network
Light Industrial Application
Medical Laboratory
Server
Plug/Connector TypeBritish BS1363A
Cord Length2.40 m
PhaseSingle Phase
Receptacle TypeIEC 60320 C19
IEC 60320 C13
Receptacle Detail3 x IEC 320-C13


Power Description

Input Voltage230 V AC
Output Voltage230 V AC
Waveform TypeSine Wave
Input Voltage Range160 V AC - 275 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)3 kVA
Load Capacity (Watt)3 kW

Physical Characteristics

Weight (Approximate)15.90 kg
Form FactorRack-mountable
Rack Height1U
Height43 mm
Width432 mm
Depth560 mm
Product ColorSilver Grey
Color FamilySilver
Mounting LocationVertical
Mounting PreferenceNo Preference

Miscellaneous

Package ContentsSmart-UPS Ultra 3000VA Rack-mountable UPS
RJ45 cable

Environmentally FriendlyYes
For Country/RegionUnited States
Product Take Back ProgramYes
RoHS Exemption Information download.schneider-electric/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UINC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UINCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112324&lang=en-us
EU RoHS Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=export&pid=567112324&lang=en-us
Environmental Profile Availability download.schneider-electric/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311012EN
End of Life Manual Availability download.schneider-electric/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
REACH free of SVHCNo
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
