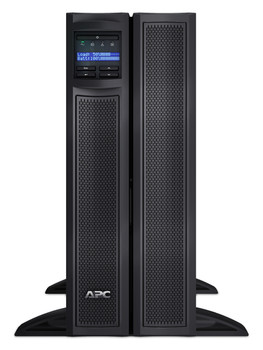

Apc Smart-Ups X SMX3000HVNC 3000Va 8X C13 + 2X C19 Outlet Usb Expandable Runtime SMX3000HVNC

APC Smart-UPS X SMX3000HVNC - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, NMC. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 738 VAh, Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 4U. Compliance certif Stay always online and prevent data loss As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware. Extend the runtime You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120BP). A runtime of several hours is even possible. Safety In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use. Manage your Smart-UPS Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software. PowerChute Network Shutdown PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on. *For HCI and virtual machine support an additional license is required:1 year: SWPCNS1Y-DIGI 3 years: SWPCNS3Y-DIGI 5 years: SWPCNS5Y-DIGI Remote management and monitoring of your network The network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure?�� IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure?�� IT also includes the functionalities of the support contract below. Support contract The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:??� New and improved functions ??� Security updates ??� Advanced support *The above license is available in the following variants:1 year: SWNMC3SU-1Y-DIGI 3 years: SWNMC3SU-3Y-DIGI 5 years: SWNMC3SU-5Y-DIGI Ease of use The basic functionalities can be set and read using physical buttons and an LCD screen. Rack/tower convertible The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (4U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A. Extend the lifespan The internal battery cartridge (APCRBC143) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX3000HVNC or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online. Warranty extension The factory warranty of the SMX3000HVNC is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-05). Switched Outlet Groups: Remote reboot and phased start-up Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS. It is also possible to rese
Interfaces/Ports

Serial PortYes

Management

Network ManagementSNMP/HTTP Remote Monitoring
AlarmLow Battery

Battery Information

Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)18 Minute
Backup/Run Time (Full Load)6 Minute
Battery CharacteristicsMaintenance-free
Typical Battery Recharge Time3 Hour

General Information

Product TypeLine-interactive UPS
Manufacturer Part NumberSMX3000HVNC
schneider-electric
ManufacturerSchneider Electric SA
Product NameSmart-UPS 3000VA Tower/Rack Mountable UPS
Product LineSmart-UPS
Product SeriesSMX
Brand NameAPC by Schneider Electric

Miscellaneous

Package ContentsSmart-UPS 3000VA Tower/Rack Mountable UPS
CD with Software
Rack Mounting Support Rails
Smart UPS Signalling RS-232 Cable
Temperature Probe
User Manual
Web/SNMP Management Card

Certifications & StandardsC-tick
CE
CSA
EN 50091-1
EN 50091-2
EN 55022 Class A
EN 60950
FCC Part 15 Class A
GOST
IRAM
UL 1778
VDE
UL 1449

Environmentally FriendlyYes
Mercury FreeYes
For Country/RegionUnited States
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
RoHS Exemption Information download.schneider-electric/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3000HVNC_ROHS_DECLARATION&p_FileName=SMX3000HVNCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166978&lang=en-us
EU RoHS Declaration URL checkaproduct.se/DistantRequestDispatcher.aspx?action=export&pid=384166978&lang=en-us
Environmental Profile Availability download.schneider-electric/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029EN
End of Life Manual Availability download.schneider-electric/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHCNo
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)


Power Description

Input Voltage208 V AC
230 V AC
Output Voltage208 V AC
230 V AC
Surge Energy Rating645 J
Waveform TypeSine Wave
Load Capacity (VA)3 kVA
Load Capacity (Watt)2.70 kW

Physical Characteristics

Weight (Approximate)38.64 kg
Form FactorRack/Tower
Rack Height4U
Height432 mm
Width178 mm
Depth483 mm
Product ColorBlack
Color FamilyBlack
Mounting LocationFront
Mounting PreferenceLower

Technical Information

Emergency Power OFFYes
Protection TypeSurge
AC Noise
Plug/Connector TypeBritish BS1363A
IEC 60320 C20
SCHUKO CEE 7 EU1-16P
Cord Length2.44 m
Receptacle TypeSchuko CEE 7/EU1-16P
Receptacle Detail2 x IEC Jumper
8 x IEC 320-C13
2 x IEC 320-C19
