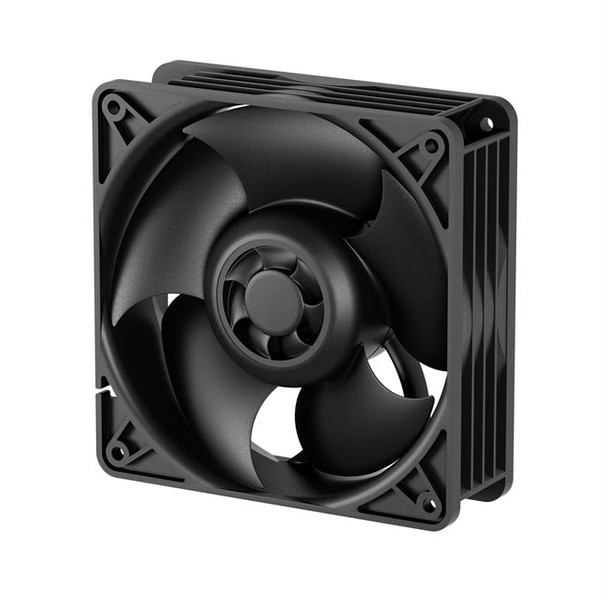

ARCTIC S12038-8K 120 Mm 8k Rpm Server Fan ACFAN00294A

Workstation & Server Cooling
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

Specs




Performance


Suitable location

Locations in which the product can be used.

Computer case


Type

Characteristics of the device.

Fan


Fan diameter

The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
cm


Rotational speed (min)

800 RPM


Rotational speed (max)

8000 RPM


Maximum airflow

220 cfm


Airflow

370 m³/h


Maximum air pressure

37 mmH2O


Pulse-width modulation (PWM) support




Bearing type

Dual ball bearing


Quantity per pack

1 pc(s)


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 70 °C


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Fan connector

4-pin


Power


Rated voltage
V


Starting voltage

6.5 V



Power


Power protection features

Features that protect the device against power problems e.g. overload.

Over voltage, Reverse polarity, Under voltage


Rated current

2.2 A


Maximum current

The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.

3.2 A


Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

38 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

328 g


Cable length

How long the cable is.

0.3 m


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.
5 mm


Package height

The distance from the top to the bottom of the packaging.

43 mm


Package weight

Weight of the packaged product.

367 g


Packaging content


Screws included




Number of screws

4
