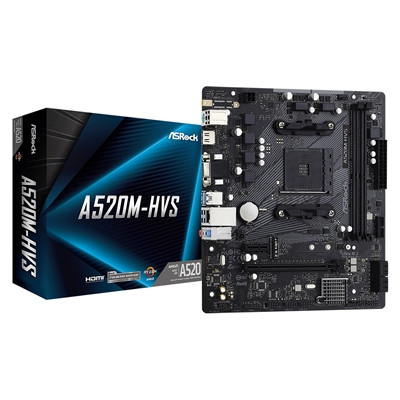

Asrock A520M-HVS Amd Socket Am4 Micro Atx Vga/Hdmi M.2 Usb 3.2 Gen1 Motherb A520M-HVS

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors(3000 and 4000 Series Processors) 6 Phase Power Design Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3) 6 x USB 3.2 Gen1(4 x Rear, 2 x Front) 6 x USB 2.0(2 x Rear, 4 x Front) Realtek Gigabit LAN A520 MOTHERBOARD FOR EVERYONE All Essentials You Need For Computing Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Dual Graphics Outputs Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. Specifications Unique Feature ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors) 6 Power Phase design Chipset AMD A520 Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory Max. capacity of system memory: 64GB Supports Extreme Memory Profile (XMP) memory modules 15µ Gold Contact in DIMM Slots BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Dual graphics output: support D-Sub and HDMI ports by independent display controllers Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 Port Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection LAN PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE Slots 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) Connector 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket Hardware Monitor Temperature Sensing: CPU, Chassis Fans Fan Tachometer: CPU, Chassis Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans Fan Multi-Speed Control: CPU, Chassis Fans CASE OPEN detection Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design OS Microsoft Windows 10 64-bit Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
