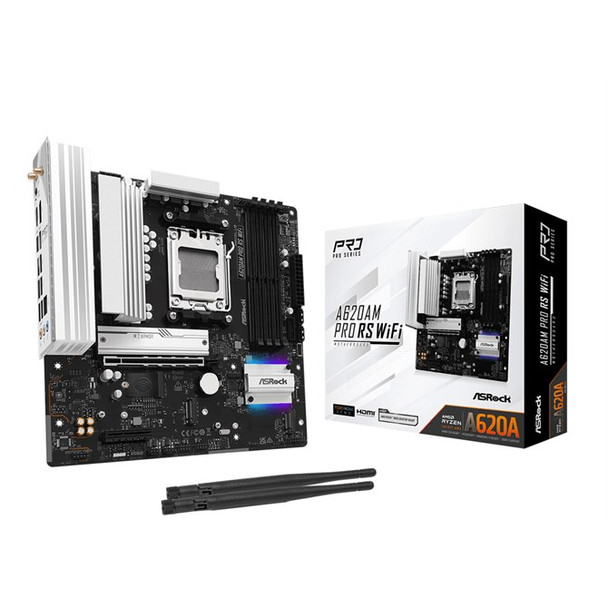

Asrock A620AM PRO RS WIFI AMD A620A Socket AM5 Micro ATX A620AM PRO RS WIFI

ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC897


Audio output channels : 7.1 channels


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.2


Cables included : SATA


Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Component for : PC


CPU fan connector : Yes


Depth : 244 mm


DisplayPort version : 1.4


DisplayPorts quantity : 1


EAN : 4711581490956


ECC ?ompatibility : ECC & Non-ECC


Ethernet interface type : 2.5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


HDMI ports quantity : 1


LAN controller : Dragon RTL8125BG


Line-in : Yes


M:2 standoff included : Yes


Manufacturer : ASRock


Manufacturer Part Code : A620AM PRO RS WIFI


Maximum internal memory : 256 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 0


Motherboard chipset : AMD A620A


Motherboard chipset family : AMD


Motherboard form factor : micro ATX


Number of CPU fan connectors : 1


Number of EPS power connectors (8-pin) : 1


Number of M:2 (M) slots : 1


Number of memory slots : 4


Number of RGB LED pin headers : 4


Number of SATA III connectors : 2


PCI Express x16 (Gen 3:x) slots : 1


PCI Express x16 (Gen 4:x) slots : 1


Processor manufacturer : AMD


Processor socket : Socket AM5


Product name : A620AM Pro RS WiFi


RAID levels : 0, 1, 10


RAID support : Yes


RGB LED pin header : Yes


Screws included : Yes


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


Top Wi-Fi standard : Wi-Fi 6E (802.11ax)


TPM connector : Yes


USB 2:0 connectors : 2


USB 2:0 ports quantity : 4


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 2


USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 3


Width : 244 mm


Wi-Fi : Yes


Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Windows operating systems supported : Windows 10 x64, Windows 11 x64
