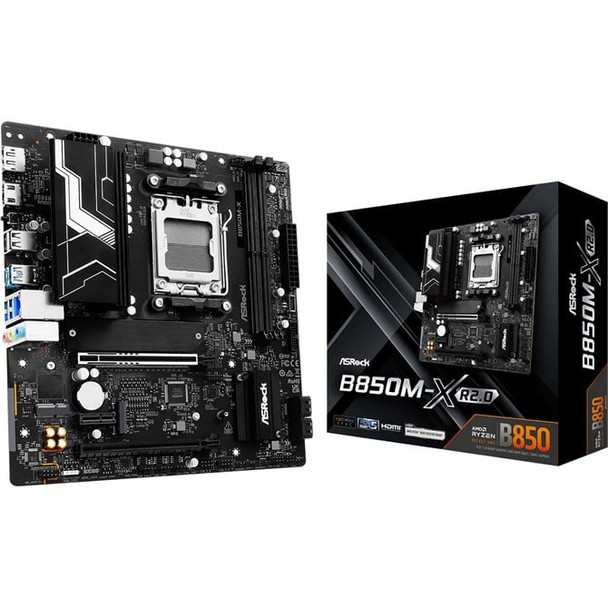

Asrock B850M-X R2.0 AMD B850 Socket AM5 Micro ATX B850M-X R2.0

ATX Power connector (24-pin) : Yes


Audio output channels : 7.1 channels


BIOS memory size : 256 Mbit


BIOS type : UEFI AMI


Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Component for : PC


CPU fan connector : Yes


Depth : 226 mm


DisplayPort version : 1.4


DisplayPorts quantity : 1


EAN : 4711581490758


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 2.5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


HDMI ports quantity : 1


LAN controller : Dragon RTL8125BG


Manufacturer : ASRock


Manufacturer Part Code : B850M-X R2.0


Maximum internal memory : 128 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Model : 0


Motherboard chipset : AMD B850


Motherboard chipset family : AMD


Motherboard form factor : micro ATX


Number of CPU fan connectors : 2


Number of EPS power connectors (8-pin) : 1


Number of M:2 (M) slots : 1


Number of memory slots : 2


Number of SATA III connectors : 4


PCI Express x1 (Gen 4:x) slots : 1


PCI Express x16 (Gen 4:x) slots : 1


PCI Express x16 (Gen 5:x) slots : 1


Processor manufacturer : AMD


Processor socket : Socket AM5


Product name : B850M-X R2.0


RGB LED pin header : Yes


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


TPM connector : Yes


Unbuffered memory : Yes


USB 2:0 connectors : 2


USB 2:0 ports quantity : 2


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 1


USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 3


Width : 244 mm


Wi-Fi : No


Windows operating systems supported : Windows 10 x64, Windows 11 x64
