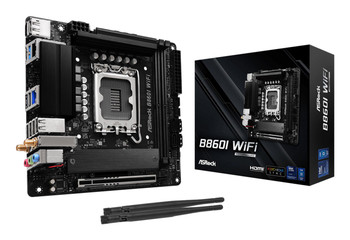

Asrock B860I WIFI Intel B860 LGA 1851 Socket V1 Mini ITX B860I WIFI

ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC897


Audio output channels : 7.1 channels


BIOS memory size : 256 Mbit


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.3


Cables included : SATA


Component for : PC


CPU fan connector : Yes


Depth : 170 mm


DisplayPort version : 1.4


DisplayPorts quantity : 1


EAN : 4711581490321


ECC ?ompatibility : Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 2.5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 2


Front panel audio connector : Yes


Graphics card family : Intel


HDMI ports quantity : 1


LAN controller : Dragon RTL8125BG


Line-in : Yes


Manufacturer : ASRock


Manufacturer Part Code : B860I WIFI


Maximum internal memory : 128 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 0


Motherboard chipset : Intel B860


Motherboard chipset family : Intel


Motherboard form factor : mini ITX


Number of chassis fan connectors : 1


Number of CPU fan connectors : 1


Number of EPS power connectors (8-pin) : 1


Number of M:2 (M) slots : 1


Number of memory slots : 2


Number of RGB LED pin headers : 1


Number of SATA III connectors : 4


On-board graphics card : Yes


PCI Express x16 (Gen 5:x) slots : 1


Processor manufacturer : Intel


Processor socket : LGA 1851 (Socket V1)


Product name : B860I WiFi


RAID levels : 0, 1, 5, 10


RAID support : Yes


RGB LED pin header : Yes


Screws included : Yes


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


Top Wi-Fi standard : Wi-Fi 6E (802.11ax)


Unbuffered memory : Yes


USB 2:0 connectors : 1


USB 2:0 ports quantity : 4


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 1


USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 2


USB 3:2 Gen 2 (3:1 Gen 2) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 1


USB 3:2 Gen 2x2 Type-C ports quantity : 1


Width : 170 mm


Wi-Fi : Yes


Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Windows operating systems supported : Windows 11 x64
