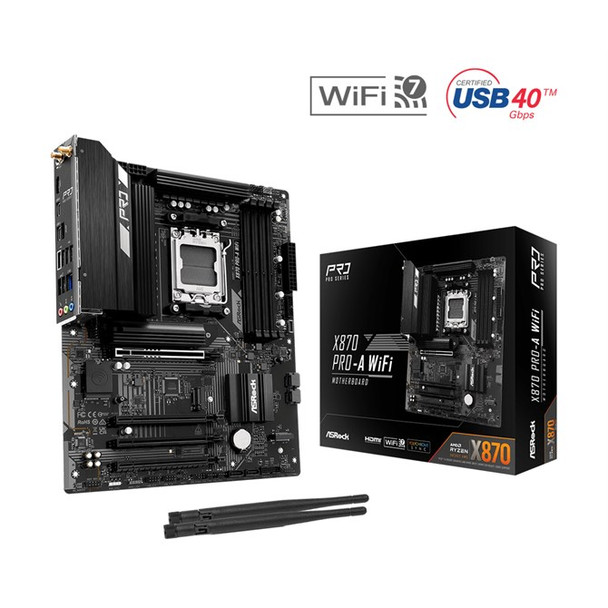

Asrock X870 PRO-A WIFI AMD X870 Socket AM5 ATX X870 PRO-A WIFI

ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC897


Audio output channels : 7.1 channels


BIOS memory size : 512 Mbit


BIOS type : EFI AMI


Bluetooth : Yes


Bluetooth version : 5.4


Cables included : SATA


Compatible processor series : AMD Ryzen 6000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen PRO 7000 Series, AMD Ryzen PRO 8000 Series, AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series


Component for : PC


CPU fan connector : Yes


Depth : 244 mm


EAN : 4710483942310


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 2.5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


HDMI ports quantity : 1


LAN controller : Dragon RTL8125BG


Line-in : Yes


Manufacturer : ASRock


Manufacturer Part Code : X870 PRO-A WIFI


Maximum internal memory : 256 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 0


Motherboard chipset : AMD X870


Motherboard chipset family : AMD


Motherboard form factor : ATX


Number of CPU fan connectors : 2


Number of EPS power connectors (8-pin) : 2


Number of M:2 (M) slots : 1


Number of memory slots : 4


Number of SATA III connectors : 4


PCI Express x16 (Gen 4:x) slots : 3


PCI Express x16 (Gen 5:x) slots : 1


Processor manufacturer : AMD


Processor socket : Socket AM5


Product name : X870 Pro-A WiFi


RAID levels : 0, 1, 10


RAID support : Yes


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


Top Wi-Fi standard : Wi-Fi 7 (802.11be)


TPM connector : Yes


USB 2:0 connectors : 2


USB 2:0 ports quantity : 4


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 3


USB 3:2 Gen 1 (3:1 Gen 1) Type-A ports quantity : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 2


USB 3:2 Gen 2x2 Type-C ports quantity : 2


Width : 305 mm


Wi-Fi : Yes


Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)


Windows operating systems supported : Windows 10 x64, Windows 11 x64
