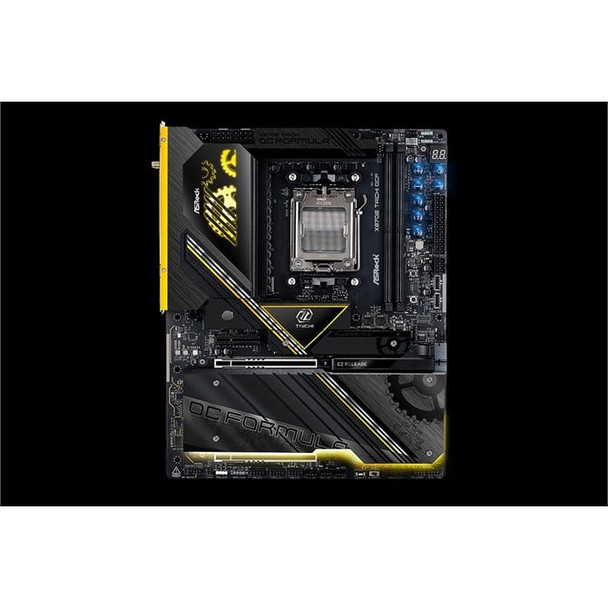

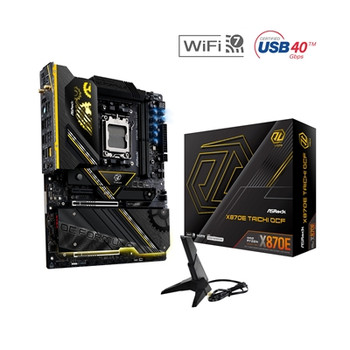

Asrock X870E TAICHI OCF AMD X870E Socket AM5 ATX X870E TAICHI OCF

12V power connector : Yes


Antenna included : Yes


ATX Power connector (24-pin) : Yes


Audio output channels : 5.1 channels


BIOS memory size : 512 Mbit


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.4


Cables included : SATA


Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Component for : PC


CPU fan connector : Yes


Depth : 244 mm


EAN : 4711581492509


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


HDMI ports quantity : 1


LAN controller : Realtek RTL8126


Manufacturer : ASRock


Manufacturer Part Code : X870E TAICHI OCF


Maximum internal memory : 128 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 0


Motherboard chipset : AMD X870E


Motherboard chipset family : AMD


Motherboard form factor : ATX


Number of chassis fan connectors : 4


Number of CPU fan connectors : 2


Number of EPS power connectors (8-pin) : 2


Number of M:2 (M) slots : 1


Number of memory slots : 2


Number of RGB LED pin headers : 1


Number of SATA III connectors : 2


PCI Express x16 (Gen 5:x) slots : 2


PCI Express x4 (Gen 4:x) slots : 1


Processor manufacturer : AMD


Processor socket : Socket AM5


Product name : X870E Taichi OCF


PS/2 ports quantity : 1


RAID levels : 0, 1, 10


RAID support : Yes


RGB LED pin header : Yes


S/PDIF out port : Yes


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : Micro SATA III, M.2


Top Wi-Fi standard : Wi-Fi 7 (802.11be)


USB 2.0 ports quantity : 2


USB 2:0 connectors : 3


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity : 1


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 7


USB 3:2 Gen 2x2 connectors : 2


USB4 Gen 3x2 ports quantity : 2


Width : 305 mm


Wi-Fi : Yes


Wi-Fi standards : 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


Windows operating systems supported : Windows 10 x64, Windows 11 x64
