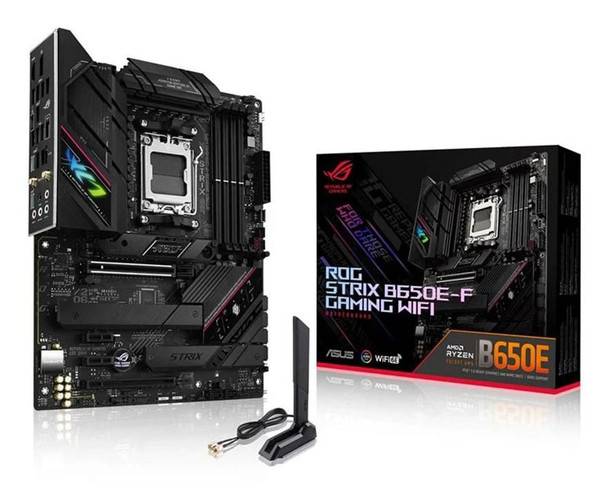

Asus 90MB1BQ0-M0EAY0 Rog Strix B650E-F Gaming Wifi 90MB1BQ0-M0EAY0

ROG STRIX B650E-F GAMING WIFI
This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen� processors, the ROG Strix B650E-F leaves its competition in the dust.

DIY-FRIENDLY FEATURES
PCIE� SLOT Q-RELEASE
A physical button unlocks the first PCIe slot�s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it�s time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE
With robust power delivery, speedy storage and memory, and comprehensive cooling, the Strix B650E-F brings high performance to every scenario.

Take advantage of future storage and GPU performance with a PCIe 5.0 and two PCIe 4.0 M.2 slots, all with robust heatsinks, and a PCIe 5.0 x16 slot that features SafeSlot for increased durability and Q-Release for easy upgrades.

LEADING CONNECTIVITY
The ROG Strix B650E-F delivers next-gen connectivity for ultrafast data transfers and low-latency networking. An advanced audio solution allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

2.5G ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel� 2.5 Gbps Ethernet.

PLAY IN STYLE
Slick aesthetics and Aura Sync RGB controls let the ROG Strix B650E-F shine in every build.

UNDENIABLY ROG STRIX
An overall dark aesthetic is accented with punchy brand-centric details and a logo that glows with fully-customizable RGB lighting. A meld of form and function is illustrated by a cut-out I/O shield, which allows additional airflow to pass through the VRM heatsink channels below. Pair the Strix B650E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen� 7000 Series processor and ROG Strix B650E-F Gaming WiFi to experience advanced performance. With up to 16 �Zen 4� cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen� 7000 Series keeps you ahead of the game.1

You�ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe� 5.0. AMD Ryzen� 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO� technology.2

BIOS



BIOS memory size



256 Mbit


BIOS type



UEFI AMI


Clear CMOS button



Yes


Expansion slots



Number of M.2 (M) slots



3


PCI Express x1 (Gen 4.x) slots



2


PCI Express x16 (Gen 4.x) slots



1


PCI Express x16 (Gen 5.x) slots



1


Features



Audio chip



Realtek ALC4080


Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



AMD B650


Motherboard chipset family



AMD


Motherboard form factor



ATX


Windows operating systems supported



Windows 11 x64


Graphics



Parallel processing technology support



Not supported


Internal I/O



12V power connector



Yes


ATX Power connector (24-pin)



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


EPS power connector (8-pin)



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



4


Number of COM connectors



1


Number of SATA III connectors



4


Peripheral (Molex) power connectors (4-pin)



1


RGB LED pin header



Yes


S/PDIF out connector



Yes


Thunderbolt headers



1


USB 2.0 connectors



4


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


USB 3.2 Gen 2 (3.1 Gen 2) connectors



1


Memory



ECC



Yes


Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speeds



4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Bluetooth



Yes


Bluetooth version



5.2


Ethernet interface type



2.5 Gigabit Ethernet


Ethernet LAN



Yes


LAN controller



Intel I225-V


Top Wi-Fi standard



Wi-Fi 6E (802.11ax)


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)


Package dimensions



Depth (package,cm)



26.5 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



7.1 cm


Width (package,cm)



28 cm


Packaging content



Cables included



SATA


Processor



Compatible processor series



AMD Ryzen� 7


Processor manufacturer



AMD


Processor socket



Socket AM5


Supported processor sockets



Socket AM5


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



24.4 cm


Product Width



30.5 cm


Rear panel I/O ports



DisplayPorts quantity



1


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


Headphone outputs



3


Line-in



Yes


Microphone in



Yes


USB 2.0 ports quantity



4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Storage controllers



RAID levels



0, 1, 10


RAID support



Yes


Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
