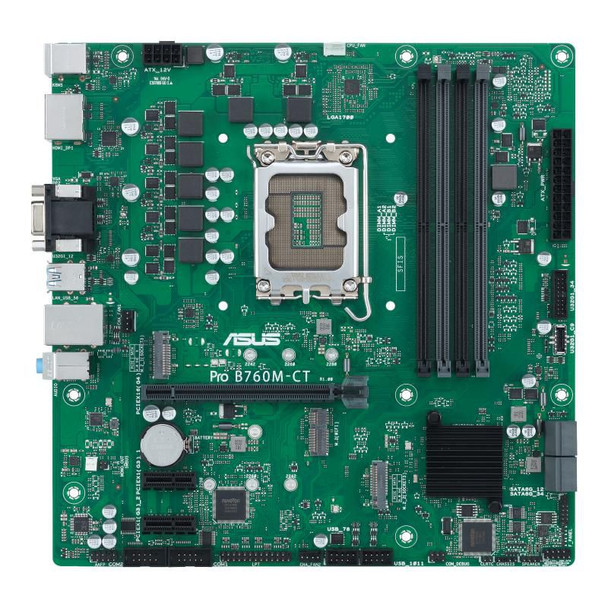

Asus 90MB1DY0-MVEAYC Pro B760M-Ct-Csm Intel B760 90MB1DY0-MVEAYC

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express � a US$60

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 4.0
This business motherboard is specially designed for 13th Gen Intel� Core� processors and offer PCIe� 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it�s needed.

Enhances system security from bottom to top
ASUS Boot Defender
ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect, detect and recover the boot environment against any intrusions and attacks.

ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

NIST SP 800-193 Compliant
ASUS Business motherboard with ASUS Boot Defender adheres to the National Institute of Standards and Technology (NIST) Platform Firmware Resiliency guidelines to protect against potentially destructive attacks.

Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Boot Defender
ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It�s designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks.

ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

ASUS MANAGEMENT SUITE
Make IT work more efficiency!
Event Log
A built-in event log enables easier troubleshooting by capturing useful system information

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.
* ASUS DASH LAN card sold separately. For more information, please contact your local ASUS sales representative.

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

BIOS



BIOS memory size



128 Mbit


Clear CMOS button



Yes


Expansion slots



Number of M.2 (M) slots



2


PCI Express x1 (Gen 3.x) slots



2


PCI Express x16 (Gen 4.x) slots



1


Features



Audio output channels



7.1 channels


Component for



PC


Motherboard chipset



Intel B760


Motherboard chipset family



Intel


Motherboard form factor



micro ATX


Windows operating systems supported



Windows 10 x64, Windows 11


Graphics



Parallel processing technology support



Not supported


Internal I/O



Audio connector



Yes


Chassis intrusion connector



Yes


CPU fan connector



Yes


Front panel audio connector



Yes


Number of chassis fan connectors



2


Number of COM connectors



3


Number of SATA III connectors



4


USB 2.0 connectors



2


USB 3.2 Gen 1 (3.1 Gen 1) connectors



2


Memory



Maximum internal memory



128 GB


Memory channels



Dual-channel


Memory slots type



DIMM


Non-ECC



Yes


Number of memory slots



4


Supported memory clock speed (max)



6200 MHz


Supported memory clock speeds



4800, 5000, 5400, 5600, 5800, 6000, 6200


Supported memory types



DDR5-SDRAM


Unbuffered memory



Yes


Network



Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Wi-Fi



Yes


Other features



Number of M.2 (E) slots



1


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Packaging content



Cables included



SATA


Processor



Compatible processor series



Intel� Celeron�, Intel� Pentium� Gold, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9


Processor manufacturer



Intel


Processor socket



LGA 1700


Supported processor sockets



LGA 1700


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



24.4 cm


Product Width



24.4 cm


Rear panel I/O ports



DisplayPort version



1.4


DisplayPorts quantity



2


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


HDMI version



2.1


Headphone outputs



1


Microphone in



Yes


PS/2 ports quantity



2


USB 2.0 ports quantity



2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) ports quantity



1


Storage controllers



Supported storage drive interfaces



M.2, SATA III


Supported storage drive types



HDD & SSD


Vendor information



Brand Name


Asus


Warranty



1 Year(s)
