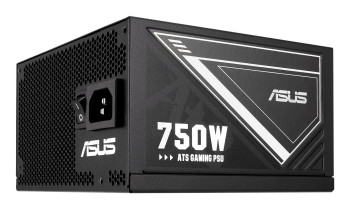

ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black 90YE04A1-B0NC00

80 PLUS certification : 80 PLUS Gold


AC input voltage : 110 - 240 V


ATX power connector (20+4 pin) : Yes


Bearing technology : Ball bearing


Cables included : AC, PCIe, SATA


Cabling type : Fully-Modular


Combined power (+3:3V) : 100 W


Combined power (+5V) : 100 W


Combined power (+5Vsb) : 15 W


Combined power (-12V) : 750 W


Compliance certificates : RoHS


Cooling type : Active


CPU power cable length : 65 cm


CPU power connector (4+4 pin) : Yes


Depth : 140 mm


EAN : 4711387870020


Efficiency : 92%


Height : 86 mm


Manufacturer : ASUS


Manufacturer Part Code : 90YE04A1-B0NC00


Max output current (+12V) : 62.5 A


Max output current (+3:3V) : 20 A


Max output current (+5V) : 20 A


Max output current (+5Vsb) : 3 A


Mean time between failures (MTBF) : 120000 h


Model : 1


Motherboard power cable length : 55 cm


Motherboard power connector : 20+4 pin ATX


Number of fans : 1 fan(s)


Number of SATA power connectors : 3


On/off switch : Yes


Package depth : 180 mm


Package height : 115 mm


Package type : Box


Package weight : 2.78 kg


Package width : 250 mm


Packaging content : Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1


PCI Express power cable length : 67.5 cm


PCI Express power connectors (6+2 pin) : 2


Peripheral (Molex) power connectors (4-pin) : 3


Power Factor Correction (PFC) type : Active


Power protection features : Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage


Power supply unit (PSU) form factor : ATX


Product colour : Black


Product name : ATS-750G


Purpose : PC


Total power : 750 W


Weight : 1.53 kg


Width : 150 mm
