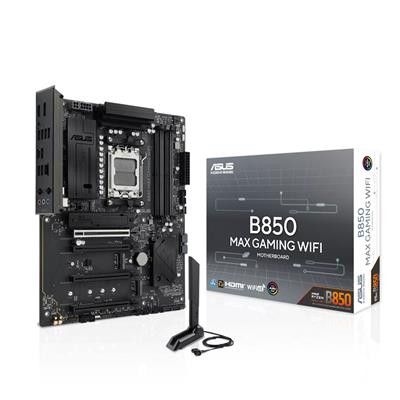

Asus B850 MAX GAMING WIFI Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Atx B850 MAX GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7846


Product Specifications



Product Name:

ASUS B850 MAX GAMING WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

B850 MAX GAMING WIFI



EAN:

4711636465519



Package Type:

Retail



Warranty:

3 Years



BIOS:


32MB (256Mb) Flash ROM
UEFI AMI BIOS




Chipset:

AMD B850



CPU Interface:

Socket AM5



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8400+ (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

2



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:


1 x Realtek 2.5Gb Ethernet
ASUS LANGuard




Wireless NIC:

Wi-Fi 6E



Wireless Technology:


2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band




Bluetooth:

v5.4



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-A:

3



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



4-pin ATX Power:

1



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

2



Thunderbolt Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen 2 headers



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

24cm



Package Length:

30cm



Package Height:

4cm



Net Weight:

1.05Kg



Gross Weight:

1.26Kg



Special Features:

B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
1 x Quick start guide
