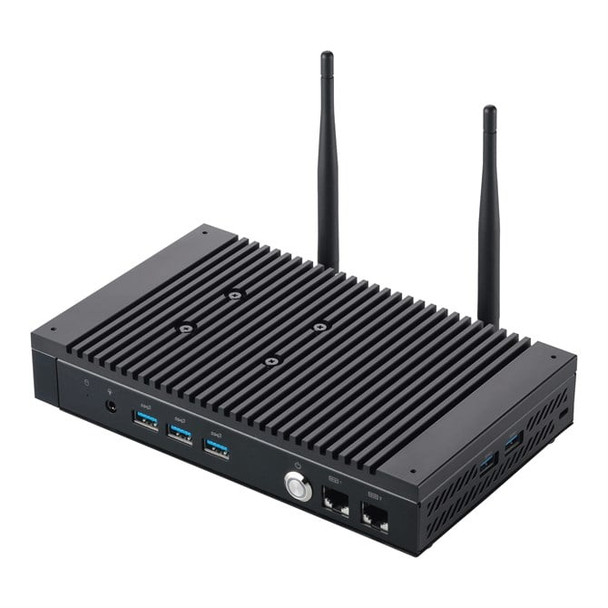

ASUS PL64 Intel Celeron 7305 8GB DDR4 128GB SSD Windows 11 Pro Mini PC Black 90MS02J2-M00890

Introducing ASUS PL64-D1 Mini PCs
ASUS PL series mini PCs are designed mainly for indoor industrial applications. PL series mini PCs are subjected to strict testing standards, offer legacy connectivity and long product life cycles to cater to a diverse range of uses.

Fanless Chassis Design with TDP 15W Support
ASUS Mini PC PL64-D1 is designed with fanless chassis. The fanless design lowers operational noise and minimizes dust ingress into the chassis to prolong the product life cycle. Even more, PL64-D1 supports up to 15-watt CPU, all makes PL64-D1 ideal for industrial applications where reliability, durability and low noise levels are paramount.

Optimized Cooling Design
To ensure optimal performance to the surrounding environment, PL64-D1 features a cooling system that are connected to a top heatsink for efficient heat dissipation, allowing it to function in up to 50°C* operational ambient temperature environments without compromising performance.
*Only for models that support 16 GB memory and below, other models support 35°C operational ambient temperature.

Triple 2.5GbE LAN Ports
Mini PC PL64-D1 is equipped with triple LAN for dividing networks or for redundancy. All 3 LAN ports support up to 2.5G. 2.5GBase-T (2.5G) networking technology to deliver speeds of up to 2.5Gbps -2.5X faster than standard gigabit Ethernet. It enables ultra-fast 2.5Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks for your needs.

Triple PoE+ (Power over Ethernet)
All LAN ports on the PL64-D1 support PoE+ with up to 30W power output. PoE (Power over Ethernet) technology enables the delivery of both network connection and power to devices through Ethernet cables. This simplifies cabling concerns and significantly reduces the time and costs associated with installation and maintenance.

Productivity
4K Resolution & Triple Display Support
Mini PC PL64-D1 is equipped with Intel® Iris® Xe Graphics (i5/i7) or Intel® UHD Graphics (i3/Celeron) to display videos and images in stunning 4K resolution. PL64-D1 can support up to three 4K displays simultaneously via HDMI® ports, makes it excellent for digital signage, billboard and advertising applications.

Advanced Output Management
EDID Emulation
ASUS Mini PC PL64-D1 features EDID (Extended Display Identification Data) emulation, it retains your signage format regardless of display power or connectivity interruptions. With EDID emulation, you can get your fine signage content back after display is temporary disconnected or connected. It makes PL64-D1 perfectly fit for signage usages.

Versatile Mounting Options
Mini PC PL64-D1 is compatible with VESA, wall, rack, and other mounts for versatile mounting options*.
* PL64 is compatible with din rail and rack mount, but only wall mount and VESA mount are available for now.

Kensington Lock For Security
A Kensington Lock guards against theft when Mini PC PL64-D1 is placed in public spaces. We can arrange this in any number of ways, but I would avoid the word 'matters' edited.

Easy Upgrade in 2 Steps
All the memory, storage, and wireless card are easy upgrade in 2 easy steps using only a screwdriver. The key parts are easy accessed after lift the cover.
1. Remove screws
Completely loosen the six screws from the bottom cover.
2. Lift and Open!
Open case design for easily upgrade

Compact Size with Metal Chassis
The ASUS Mini PC PL64-D1 is an ultra-compact device, measuring a mere 199.7 x 119.7 x 33.9 mm with a 0.81-liter chassis. Its small footprint allows for seamless integration in space-constrained environments. Furthermore, the PL64-D1 boasts a durable metal chassis, rendering it perfect for industrial applications.

Exceptional Connection Experience Wi-Fi 6 & Wi-Fi 6E*
Equipped with Wi-Fi 6E module, ASUS Mini PC PL64-D1 enables smooth streaming of high resolution videos, fewer dropped connections, and faster connections farther way from the router even in dense environment. And Wi-Fi 6E is the expanded version of Wi-Fi 6 to support extra high-speed 160MHz channels*.

rocessor
Processor manufacturer
The manufacturer that produced the processor.
Intel
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel® Celeron®
Processor model
The model number for the processor in a computer.
7305
Memory
Internal memory
A computer's memory which is directly accessible to the CPU.
8 GB
Maximum internal memory
The maximum internal memory which is available in the product.
32 GB
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR4-SDRAM
Memory slots
Number and type of memory expansion slots, including connector and memory module descriptions.
2x SO-DIMM
Storage
Total storage capacity
The total amount of data that can be stored on the device.
128 GB
Storage media
Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).
SSD
Optical drive type
An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
SSD interface
The type of interface(s) with which the Solid State Drive is connected to other hardware.
PCI Express 4.0
SSD form factor
The size of the solid-state drive, given in inches
M.2
M.2 SSD size 2280 (22 x 80 mm)
Graphics
Discrete graphics card
On-board graphics card
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model
A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.
Not available
On-board graphics card model
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
Intel® UHD Graphics
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Network
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
3
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
Mini PC
Product colour
The colour e.g. red, blue, green, black, white.
Black
Certified refurbished
Performance
Product type
The sub-category of the product.
Mini PC
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
Windows 11 Pro
Power
Power supply
The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
65 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
199.7 mm
Depth
The distance from the front to the back of something.
119.7 mm
Height
The measurement of the product from head to foot or from base to top.
33.9 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1 kg
