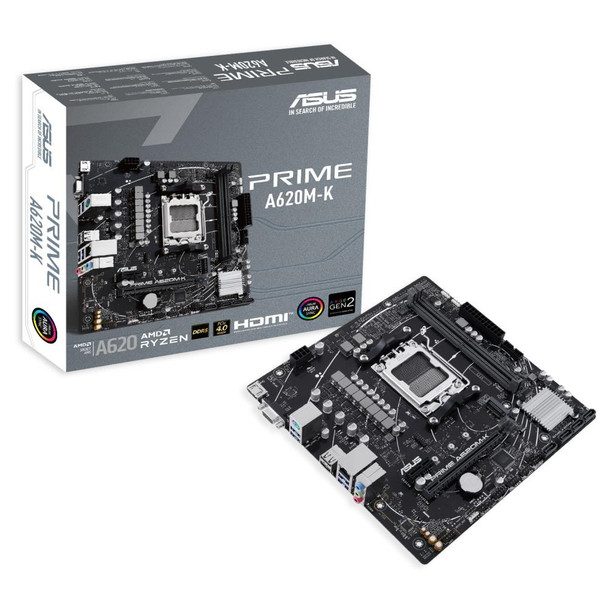

Asus PRIME A620M-K Socket Am5/A620/Ddr5/S-Ata 6Gb/S/Micro Atx PRIME A620M-K

Product Specifications



Product Name:

ASUS PRIME A620M-K (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

www.asus.com



Model Number:

PRIME A620M-K



EAN:

4711387242087



UPC:
7105242081



Package Type:

Retail



Warranty:

3 Years



BIOS:

256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD A620



CPU Interface:

Socket AM5



CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-a620m-k/helpdesk_knowledge/?model2Name=PRIME-A620M-K



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 6400+ (O.C.)



Max. Memory Support:

96GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

1 x PCIe Gen 4.0 x4



On-Board LAN:

1 x Realtek 1Gb Ethernet



On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

2



Back USB 3.2 Port(s) Type-A Gen 1:

4



Back VGA Port(s):

1



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 3.2 Header(s) Gen 1:

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

2 x Addressable Gen 2 headers
1 x Aura RGB header




Form Factor:

Micro ATX



Product Width:

221mm



Product Length:

226mm



Package Width:

26.5cm



Package Length:

27.5cm



Package Height:

5.25cm



Gross Weight:

0.96Kg



Special Features:

AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors.
Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A.
Comprehensive Cooling: PCH heatsink and Fan Xpert.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.




Package Contents:

Motherboard
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x User guide
