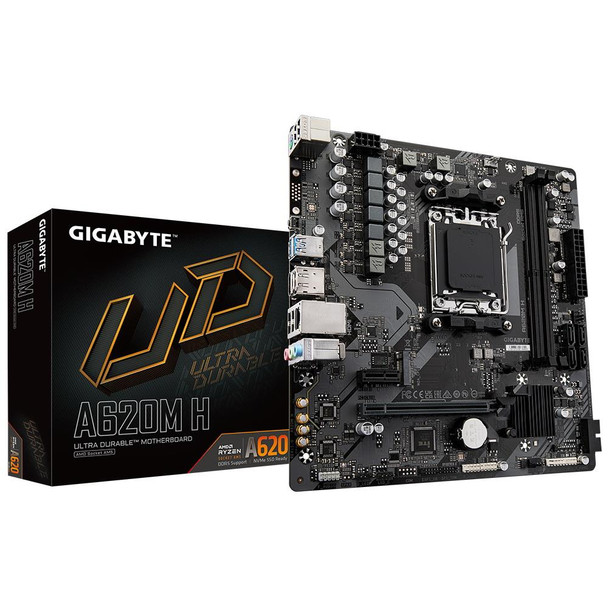

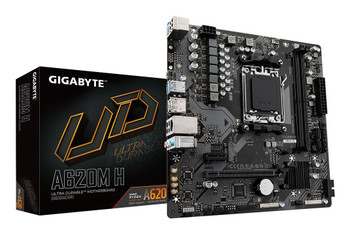

Gigabyte A620M H Socket Am5/A620/Ddr5/S-Ata 6Gb/S/Micro Atx A620M H

GIGABYTE AM5 A620M H M-ATX
SKU: 123710
Product Group:Motherboards
Manufacturer:GIGABYTE
SKU:123710
Product Name:Gigabyte A620M H (Socket AM5/A620/DDR5/S-ATA 6Gb/s/Micro ATX)
Web Address:www.gigabyte.com
Model Number:A620M H
EAN:4719331855512
UPC:889523038017
Package Type:Retail
Warranty:3 Years
BIOS:1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:AMD A620
CPU Interface:Socket AM5
CPU Support:https://www.gigabyte.com/Motherboard/A620M-H-rev-10/support#support-cpu
RAM Technology:DDR5 (Dual Channel)
RAM Slots:2 x 288-pin
RAM Speeds:Up to DDR5 6400 (O.C.)
Max. Memory Support:96GB
PCI Express 4.0 x16:1
PCI Express 3.0 x1:1
S-ATA 6Gb/s Port(s):4
RAID:Raid 0/1/10
M.2 Socket(s):1 x PCIe Gen 4.0 x4
On-Board LAN:Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
On-Board Audio:Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

On-Board Video:Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port:1
Back USB 2.0 Port(s):4
Back USB 3.2 Port(s) Type-A Gen 1:2
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
Back Button(s):1 x Q-Flash Plus
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:1
Front Panel Audio Connector:1
TPM Header(s):1
Internal Other Port(s):1 x Addressable LED Strip Header
1 x RGB LED Strip Header

Form Factor:Micro ATX
Product Width:225mm
Product Length:230mm
Package Width:26.5cm
Package Length:26.5cm
Package Height:5.5cm
Gross Weight:0.82Kg
Special Features:AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.
Unparalleled Performance: 5+2+2 Phases Digital VRM Solution.
Dual Channel DDR5: 2 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.
SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.
EZ-Latch: PCIe x16 Slot with Quick Release Design.
Fast Networks: GbE LAN.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:Motherboard
Manual
1 x SATA cable
IO Shield
