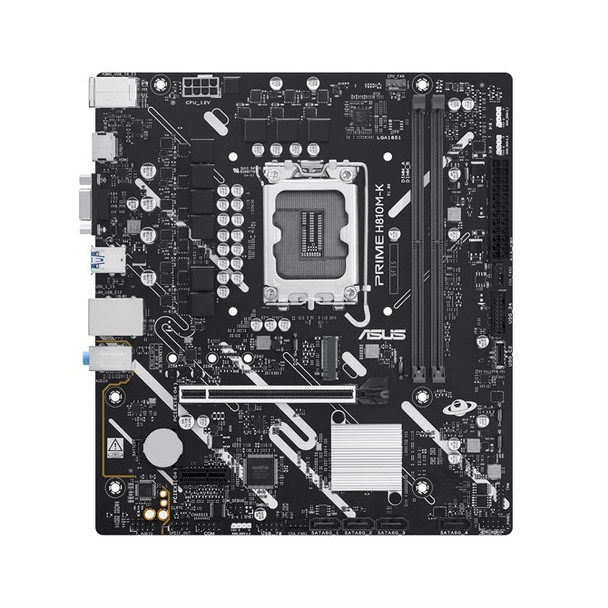

ASUS PRIME H810M-K Intel H810 LGA 1851 Socket V1 Micro ATX 90MB1N10-M0EAY0

12V power connector : Yes


1st M:2 highest PCI Express generation : 4.0


1st M:2 largest key size : 2280


ATX Power connector (24-pin) : Yes


Audio output channels : 7.1 channels


BIOS memory size : 256 Mbit


BIOS type : UEFI AMI


Cables included : SATA


Chassis intrusion connector : Yes


Compatible processor series : Intel Core Ultra (Series 2)


Component for : PC


CPU fan connector : Yes


Depth : 211 mm


EAN : 4711636292290


ECC ?ompatibility : Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


Front panel connector : Yes


HDMI ports quantity : 1


Manufacturer : ASUS


Manufacturer Part Code : 90MB1N10-M0EAY0


Maximum internal memory : 128 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Model : 1


Motherboard chipset : Intel H810


Motherboard chipset family : Intel


Motherboard form factor : micro ATX


Number of chassis fan connectors : 2


Number of COM connectors : 1


Number of CPU fan connectors : 1


Number of HDDs supported : 4


Number of M:2 (M) slots : 1


Number of memory slots : 2


Number of RGB LED pin headers : 3


Number of SATA III connectors : 4


Number of storage drives supported : 5


Package depth : 263 mm


Package height : 51.5 mm


Package weight : 828 g


Package width : 270 mm


Parallel processing technology support : Not supported


PCI Express x1 (Gen 4:x) slots : 1


PCI Express x16 (Gen 4:x) slots : 1


Processor manufacturer : Intel


Processor socket : LGA 1851 (Socket V1)


Product name : PRIME H810M-K


PS/2 ports quantity : 1


RGB LED pin header : Yes


S/PDIF out connector : Yes


Supported memory types : DDR5-SDRAM


Supported processor sockets : LGA 1851


Supported storage drive interfaces : M.2, SATA III


Supported storage drive types : HDD & SSD


TPM connector : Yes


Unbuffered memory : Yes


USB 2:0 connectors : 1


USB 2:0 ports quantity : 4


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 2


VGA (D-Sub) ports quantity : 1


Width : 234 mm


Wi-Fi : No


Windows operating systems supported : Windows 10 x64, Windows 11
