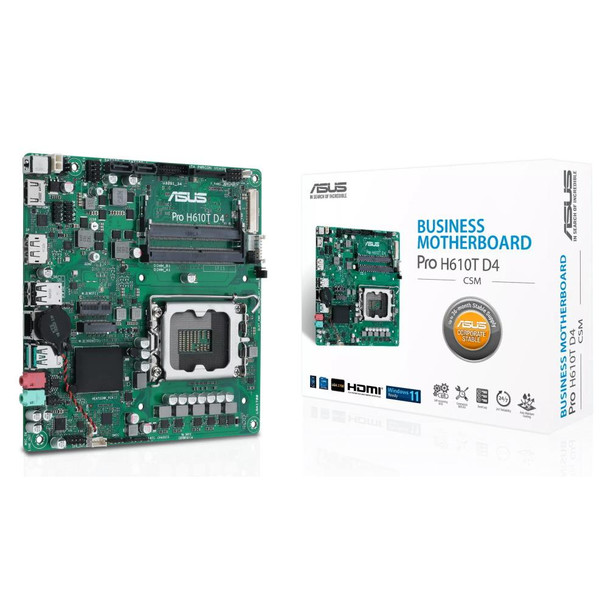

Asus PRO H610T D4-CSM Socket 1700/H610/Ddr4 So-Dimm/S-Ata 600/Thin Mini Itx PRO H610T D4-CSM

ASUS 1700 PRO H610T D4-CSM THIN M-ITX
SKU: 122388
Product Group:Motherboards
Manufacturer:ASUS
SKU:122388
Product Name:ASUS PRO H610T D4-CSM (Socket 1700/H610/DDR4 SO-DIMM/S-ATA 600/Thin Mini ITX)
Web Address:www.asus.com
Model Number:PRO H610T D4-CSM
EAN:4711081679851
UPC:195553679855
Package Type:Retail
Warranty:3 Years
BIOS:128 Mb Flash ROM
UEFI AMI BIOS

Chipset:Intel H610
CPU Interface:Socket 1700
CPU Support:https://www.asus.com/Motherboards-Components/Motherboards/CSM/Pro-H610T-D4-CSM/HelpDesk_QVL_CPU/
RAM Technology:DDR4 (Dual Channel)
RAM Slots:2 x 260-pin
RAM Speeds:Up to DDR4 3200 (O.C.)
Max. Memory Support:64GB
S-ATA 6Gb/s Port(s):2
M.2 Socket(s):1 x SATA/PCIe 4.0 x4
On-Board LAN:1 x Realtek 1Gb Ethernet
On-Board Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC
On-Board Video:Intel processor with integrated graphics is required
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 2:2
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):2
Back Other Port(s):1 x DC Power Connector (Support 19V)
USB 2.0 Header(s):3
USB 3.2 Header(s) Gen 1:1
Internal Other Port(s):1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x COM debug header
1 x Front Panel Audio header (AAFP)
1 x LVDS connector
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Form Factor:Thin Mini-ITX
Product Width:170mm
Product Length:170mm
Package Width:18.5cm
Package Length:23cm
Package Height:6cm
Gross Weight:0.67Kg
Special Features:Intel LGA 1700 socket: Ready for 12th Gen Intel processors.
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards.
ASUS Control Centre Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration.
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs.
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments.
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance.
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes.

Package Contents:Motherboard
2 x SATA 6Gb/s cables
1 x SATA power cable
2 x IO Shields
Support Disk
1 x ACC Express Activation Key Card
User guide
