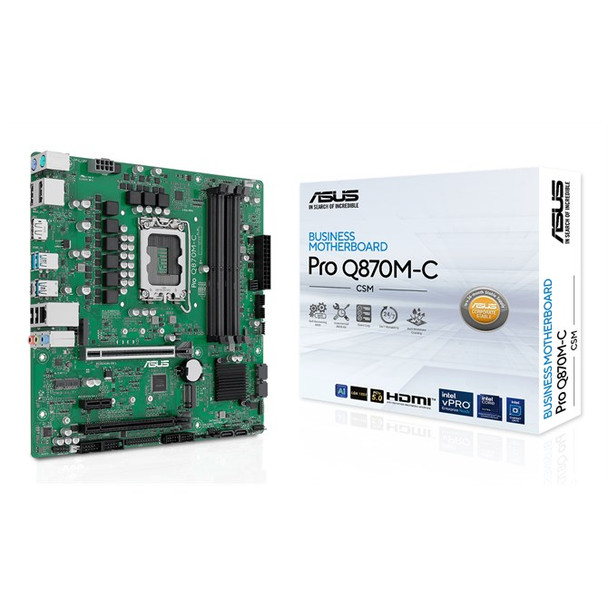

ASUS PRO Q870M-C-CSM Intel Q870 LGA 1851 Socket V1 Micro ATX 90MB1KEP-M0EAYC

12V power connector : Yes


ATX Power connector (24-pin) : Yes


Audio output channels : 7.1 channels


BIOS memory size : 256 Mbit


Compatible processor series : Intel Core Ultra (Series 2)


Component for : PC


CPU fan connector : Yes


Depth : 244 mm


DisplayPorts quantity : 2


EAN : 4711387880586


ECC ?ompatibility : Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


Front panel connector : Yes


HDMI ports quantity : 1


Height : 50 mm


LAN controller : Intel- I219-LM


Manufacturer : ASUS


Manufacturer Part Code : 90MB1KEP-M0EAYC


Maximum internal memory : 256 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 1


Motherboard chipset : Intel Q870


Motherboard chipset family : Intel


Motherboard form factor : micro ATX


Number of chassis fan connectors : 2


Number of COM connectors : 2


Number of CPU fan connectors : 1


Number of HDDs supported : 4


Number of M:2 (M) slots : 2


Number of memory slots : 4


Number of SATA III connectors : 4


Number of storage drives supported : 6


On-board graphics card : No


Package depth : 263 mm


Package height : 51.5 mm


Package weight : 889.03 g


Package width : 270 mm


Parallel processing technology support : Not supported


PCI Express x1 (Gen 4:x) slots : 1


PCI Express x16 (Gen 4:x) slots : 1


Processor manufacturer : Intel


Processor socket : LGA 1851 (Socket V1)


Product colour : Multicolour


Product name : PRO Q870M-C-CSM


PS/2 ports quantity : 2


RAID levels : 0, 1, 5, 10


RAID support : Yes


Supported memory clock speed (max) : 6400 MHz


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


Supported storage drive types : HDD & SSD


Unbuffered memory : Yes


USB 2:0 connectors : 2


USB 2:0 ports quantity : 2


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 2


USB 3:2 Gen 2 (3:1 Gen 2) Type-C ports quantity : 1


USB connector type : USB Type-A, USB Type-C


Weight : 550.6 g


Width : 244 mm


Wi-Fi : No


Windows operating systems supported : Windows 10 x64, Windows 11
