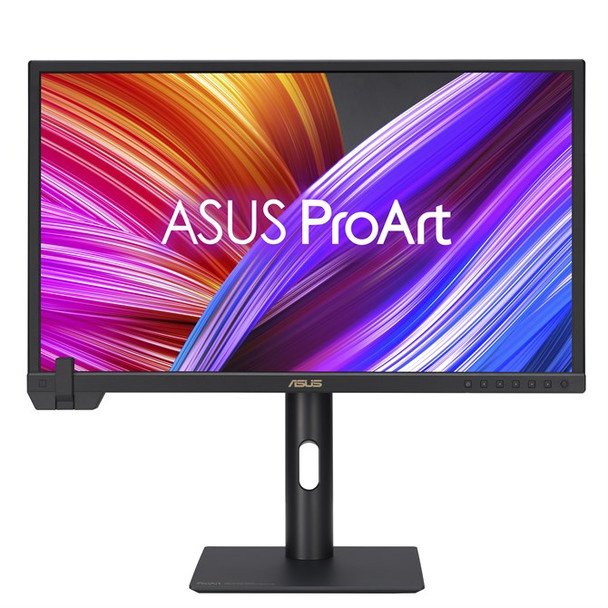

ASUS ProArt PA24US computer monitor 59.9 cm 23.6 3840 x 2160 pixels 4K Ultra HD PA24US

On-set SDI Monitor
ProArt Display PA24US is 23.6-inch 4K HDR monitor offers 187 high PPI IPS panel with 99% Adobe RGB and 95% DCI-P3 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and up to quad-view at same time. A built-in motorized flip colorimeter for auto / self calibration to ensure professional-grade color accuracy. 600 nits peak brightness with multiple HDR format support provides creators with the ideal platform for working HDR content.

Empowering Content Creators

Digital Imaging Technician (DIT)
Needs a hi-quality SDI monitor for on-set quick color grading and managing production workflow. It can provide precise and true color reproduction and details from camera and present to director/customers.

Colorists G-SDI input connection let creators who using SDI PCIe capture cards or capture boxes can be directly connect to the PA24US via SDI instead of HDMI, delivers 4K high quality uncompressed videos to preview precise image performance.

Filmmakers & Video Editors
An ultra-high-resolution with wide-color-gamut monitor performance is a must-have tool for 4K HDR video production. Factory pre-calibration ensures industry-leading color fidelity, and a wide color gamut and Delta E < 1 color difference ensures outstanding color accuracy.

Impeccable 4K HDR Imagery On-set

Uncompressed 4K Video
23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

High Dynamic Range
ProArt Display PA24US features up to 600 nits of brightness, also passed VESA DisplayHDR 600 certification. Multiple HDR format supports HDR-10 / HLG high dynamic range technology for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience.

Intuitive and Intelligent Calibration

Self Calibration
ProArt Displays now boasts an innovative self-calibration feature for the embedded colorimeter. The self-calibration is a standalone solution without any software and compatible with any operating system. You can directly complete the color calibration and scheduled color calibration functions through the OSD operation of ProArt Display. With this flexibility, you can achieve color consistency anytime and anywhere.

ProArt Calibration
ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor’s internal scaler IC chip, instead of on the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings.
*ProArt Calibration support will be ready on 2023/Q4 via firmware update.

ProArt Color Center
ProArt Color Center offers remote group control and calibration tools, allowing you to handle these vital tasks from a centralized location. You’ll be able to remote control & group calibration, scheduled calibration and customized color parameters to maintain professional-level accuracy and consistency all the time.

Seamless Calibration
ProArt Displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.
*Calman Ready and Light Illusion ColourSpace CMS support will be ready on 2023/Q4 via firmware update.

Enjoy true-to-life color
PA24US exceeds industry color reproduction standards with its 99% Adobe RGB and 95% DCI-P3 color gamut, and it features true 10-bit color depth to display more than 1.07 billion colors. 600 nits peak brightness to ensure the deepest blacks and brightest whites, enabling PA24US to accurately display the most minute details in shadows and bright highlights for incredibly realistic visuals.

Class-Leading Color Fidelity
Each ProArt display is factory pre-calibrated using a new, three-scale process to guarantee industry-leading color fidelity. The display then undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother color gradations, better uniformity and high color accuracy with a Delta E < 1 color difference value. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM standard for medical use.

Create in Ultra-Vivid HDR

ASUS Smart HDR Technology
Exclusive ASUS Smart HDR technology enables ProArt Display PA24US to support multiple HDR formats, including HLG and HDR10.

HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.

HDR10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.

Multiple PQ Curves
ASUS ProArt Displays support multiple HDR10 curves, including PQ Hard Clip, PQ Optimized and PQ Basic, which can cover all content creation needs.

HDR Preview
HDR Preview enables a direct camera-to-monitor connection to view captured HDR content with its full tonal range. It also works within most video editing software platforms, providing accurate simulations of the final output for an easier, more streamlined editing experience.
*Raw data/camera imagery must support HDR mode and follow PQ curve.

Streamlined, Efficient Workflows
G-SDI Connectivity
SDI (Serial digital interface) is a professional video signal that’s preferred in production environments, providing longer distance without video compression with reliability. BNC-type cable that has specialized connectors on each end to lock into the devices they connect to, so it cannot be easily dropped or pulled out.

Compare with general 3G-SDI, 12G-SDI provides up to 4x bandwidth allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

Connect to your workflow
Rich connectivity offers a full-function USB-C port enables superfast data transfers, video signal and 80-watt power delivery to charge laptops and other devices?all via a single cable. DisplayPort1.4 and two HDMI(v2.0) for compatibility with current and future displays and peripherals. It also features an earphone jack and USB 3.2 hub.

Picture-by-Picture (PbP)
View two to four different settings simultaneously by placing multiple input sources onscreen side-by-side; and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.

Picture-in-Picture (PiP)
Easily place your second input source in a window in one corner of the display.

ASUS Flicker-Free technology
It's time to say goodbye to those tired, strained eyes. ProArt Displays features TÜV Rheinland-certified ASUS Flicker-Free technology to reduce flicker and minimize instances of eyestrain and other damaging ailments for a comfortable viewing experience.

Blue Light Filter
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light, and you can easily access via a hotkey. ProArt displays has undergone stringent performance tests and has been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services, to be flicker-free and to emit low blue light levels.

Ergonomic Design
A comfortable viewing position is always easy to achieve with ASUS ProArt Display. With an ergonomically-designed quick release stand with tilt, swivel, pivot and height adjustments provide comfortable viewing and usage experiences. Furthermore, the VESA wall-mountable to save on desktop space.

Accurate Real-time On-set Preview
QuickFit Plus is clever feature overlays a grid on the screen that allows to align and preview.
Center marker and safety area it can real-time preview when you are on-set shooting to avoid video image beyond the screen.
Ruler provides actual size of inch ruler in the edge; you also can customize the working size to fit your preference.

Specs




Display


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

59.9 cm (23.6")


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

3840 x 2160 pixels


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:9


Display technology

The technology used in the display e.g. plasma, LED.

LCD


Panel type

IPS


Backlight type

LED


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




Display brightness (peak)

600 cd/m²


Display brightness (typical)

Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment.

350 cd/m²


Response time

The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)

5 ms


Anti-glare screen

Always gives an optimal view, even in direct sunlight.




Screen shape

Flat


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.
00:1


Contrast ratio (dynamic)

A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
0000000:1


Maximum refresh rate

60 Hz


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
8°


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
8°


Display number of colours

1.073 billion colours


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.135 x 0.135 mm


Viewable size, horizontal

The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image.

52.2 cm


Viewable size, vertical

29.4 cm


Digital horizontal frequency
- 135 kHz


Digital vertical frequency

48 - 60 Hz


High Dynamic Range (HDR) supported




High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)


Colour depth
bit


Colour gamut standard

DCI-P3


Colour gamut

95%


sRGB coverage (typical)
0%


Adobe RGB coverage

99%


Performance


NVIDIA G-SYNC




AMD FreeSync

The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.




Flicker-free technology




Low Blue Light technology




Multimedia


Number of speakers

The quantity of speakers included in/with the product.

2


RMS rated power

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

4 W


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Built-in camera

The product has an integrated camera.




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Detachable stand




Feet colour

The colour of the feet, which are the projecting part on which a device/piece of furniture, or each of its legs, stands.

Black


Ports & interfaces


Built-in USB hub

Whether or not the device features a USB hub to connect more than one other device via USB.




USB hub version

3.2 Gen 1 (3.1 Gen 1)


Number of USB Type-C upstream ports quantity

1


USB Type-A downstream ports quantity

2


USB Type-C DisplayPort Alternate Mode




USB Power Delivery (USB PD)




USB Power Delivery up to

80 W


HDMI

HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.




HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2



Ports & interfaces


HDMI version

2.0


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


DisplayPort version

1.4


Headphone out

The socket for connecting headphones to the device.




Headphone outputs

Number of sockets /ports where headphones are connected.

1


Headphone connectivity

How headphones connect to a device e.g. wirelessly or via a cable and connector.

3.5 mm


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

2.2


Ergonomics


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.
0 x 100 mm


Wall mountable

The product can be mounted on (attached to ) a wall.




Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Height adjustment

The part of the device that can be adjusted to change the height.




Adjustable height (max)
cm


Pivot




Pivot angle

-90 - 90°


Swivelling




Swivel angle range

-30 - 30°


Tilt adjustment

The tilt, which means the angle at which the device is pointing (up or down), can be changed.




Tilt angle range

-3 - 21°


Picture-in-Picture

Picture-in-picture (PiP) is a feature of some television receivers and similar devices. One program (channel) is displayed on the full TV screen at the same time as one or more other programs are displayed in inset windows. Sound is usually from the main program only.




Power


Energy efficiency class (SDR)

G


Energy efficiency class (HDR)

G


Energy consumption (SDR) per 1000 hours

45 kWh


Energy consumption (HDR) per 1000 hours

91 kWh


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

24.1 W


Power consumption (off)

0 W


Power consumption (PowerSave)

0.5 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Energy efficiency scale

A to G


European Product Registry for Energy Labelling (EPREL) code
49383


Weight & dimensions


Width (with stand)

549 mm


Depth (with stand)
0 mm


Height (with stand)

521 mm


Weight (with stand)

6 kg


Width (without stand)

549 mm


Depth (without stand)

625 mm


Height (without stand)

346 mm


Weight (without stand)

4.3 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

761 mm


Package depth

The distance from the front to the back of the packaging.

479 mm


Package height

The distance from the top to the bottom of the packaging.
2 mm


Package weight

Weight of the packaged product.

9.7 kg


Package type

The type of product package e.g. box.

Box


Packaging content


Stand included




Other features


Certification

TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 600 Calman Ready
