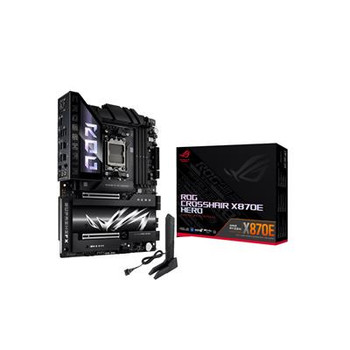

Asus ROG CROSSHAIR X870E DARK HERO Socket Am5/X870e/Ddr5/S-Ata 6Gb/S/Atx ROG CROSSHAIR X870E DARK HERO

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7750


Product Specifications



Product Name:

ASUS ROG CROSSHAIR X870E DARK HERO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

ROG CROSSHAIR X870E DARK HERO



EAN:

4711636398671



Package Type:

Retail



Warranty:

5 Years



BIOS:


64 MB (512Mb)
Flash ROM, UEFI AMI BIOS




Chipset:

AMD X870E



CPU Interface:

Socket AM5



CPU Support:

rog.asus /motherboards/rog-crosshair/rog-crosshair-x870e-dark-hero/helpdesk_qvl_cpu/



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8200+ (O.C.)



Max. Memory Support:

256GB



PCI Express 5.0 x16:

2



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


2 x PCIe Gen 5.0 x4
3 x PCIe Gen 4.0 x4




LAN Speed:


1 x Realtek 10Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard




Wireless NIC:

Wi-Fi 7



Wireless Technology:


2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth




Bluetooth:

v5.4



On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082



On-Board Video:

Processor with integrated graphics is required



Back USB 10Gbps Port(s) Type-A:

6



Back USB 10Gbps Port(s) Type-C:

3



Back USB 40Gbps Port(s) Type-C:

2



Back HDMI Port(s):

1



Back LAN Port(s):

2



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):


1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



PCIe Power Connector(s):

1 x 8-pin



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

2



USB 20Gbps Header(s):

2



Front Panel Audio Connector:

1



Internal Other Port(s):


3 x Addressable Gen2 headers
1 x Thermal Sensor header




Internal Button(s):


1 x FlexKey
1 x Start




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

30cm



Package Length:

36cm



Package Height:
cm



Net Weight:

3.20Kg



Gross Weight:

4.40Kg



Special Features:

Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4 ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.



Package Contents:


Motherboard
4 x SATA 6Gb/s cables
1 x DDR5 fan holder
1 x ROG assistant fan (60mm)
1 x Screw package for cooling kit
1 x Thermal pad for M.2 22110
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG stickers
1 x ROG VIP card
1 x ROG Bottle Opener
1 x Quick start guide
