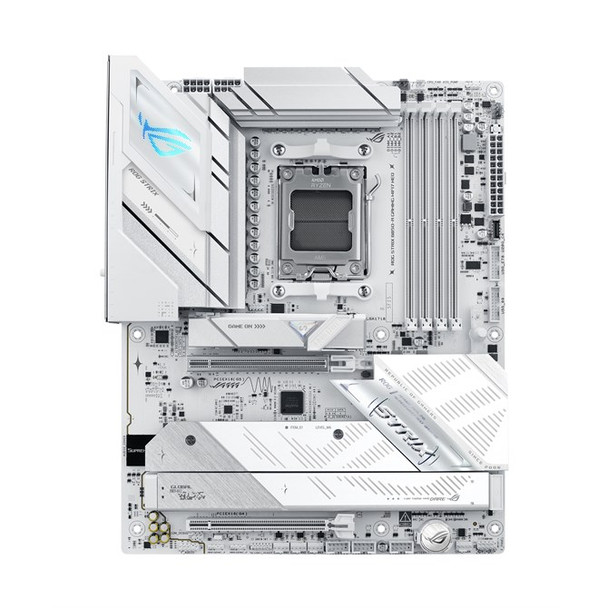

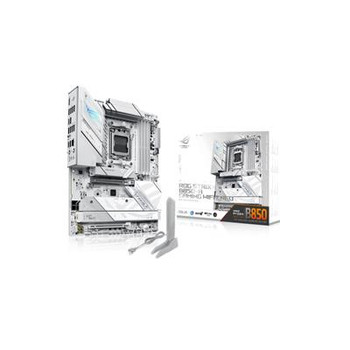

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Socket AM5 ATX 90MB1P10-M0EAY0

1st M:2 highest PCI Express generation : 5.0


1st M:2 largest key size : 2280


2nd M:2 highest PCI Express generation : 4.0


2nd M:2 largest key size : 2280


3rd M:2 highest PCI Express generation : 4.0


3rd M:2 largest key size : 2280


4th M:2 highest PCI Express generation : 4.0


4th M:2 largest key size : 2280


Antenna included : Yes


ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC4080


Audio output channels : 7.1 channels


BIOS flashback button : Yes


BIOS memory size : 512 Mbit


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.4


Cables included : SATA


Clear CMOS button : Yes


Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Component for : PC


Cooling type : Passive


CPU fan connector : Yes


Depth : 244 mm


Digital audio optical out : 1


EAN : 4711636446518


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


Front panel connector : Yes


HDMI ports quantity : 1


HDMI version : 2.1


Headphone outputs : 1


Line-in : Yes


Manufacturer : ASUS


Manufacturer Part Code : 90MB1P10-M0EAY0


Maximum internal memory : 256 GB


Maximum internal memory per slot : 64 GB


Maximum resolution : 3840 x 2160 pixels


Memory channels : Dual-channel


Memory slots type : DIMM


Model : 1


Motherboard chipset : AMD B850


Motherboard chipset family : AMD


Motherboard form factor : ATX


Number of chassis fan connectors : 4


Number of CPU fan connectors : 2


Number of EPS power connectors (8-pin) : 2


Number of HDDs supported : 4


Number of M:2 (M) slots : 4


Number of memory slots : 4


Number of RGB LED pin headers : 3


Number of SATA III connectors : 2


Number of storage drives supported : 6


Number of water pump connectors : 1


On-board graphics card : No


Parallel processing technology support : Not supported


PCI Express x16 (Gen 4:x) slots : 1


PCI Express x16 (Gen 5:x) slots : 1


Power source type : ATX


Processor manufacturer : AMD


Processor socket : Socket AM5


Product colour : White


Product name : ROG STRIX B850-A GAMING WIFI7 NEO


Quick installation guide : Yes


RAID levels : 0, 1, 5, 10


RAID support : Yes


RGB LED pin header : Yes


S/PDIF out port : Yes


Supported memory clock speed (max) : 9000 MHz


Supported memory types : DDR5-SDRAM


Supported processor sockets : Socket AM5


Supported storage drive interfaces : M.2, SATA III


Supported storage drive types : HDD & SSD


Thunderbolt headers : 1


Top Wi-Fi standard : Wi-Fi 7 (802.11be)


Unbuffered memory : Yes


USB 2:0 connectors : 3


USB 2:0 ports quantity : 2


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 2


USB 3:2 Gen 2 (3:1 Gen 2) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 2


USB 3:2 Gen 2 (3:1 Gen 2) Type-C ports quantity : 2


Width : 305 mm


Wi-Fi : Yes


Wi-Fi standards : Wi-Fi 7 (802.11be)


WiFi-AP antenna jack : 2


Windows operating systems supported : Windows 11


WLAN controller model : MediaTek MT7925
