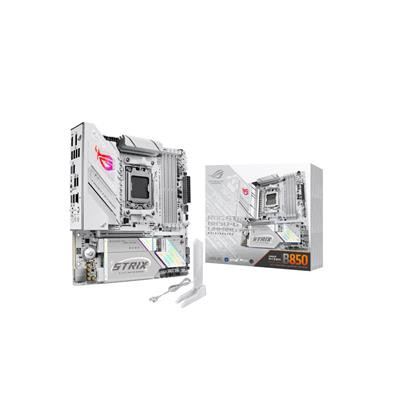

Asus ROG STRIX B850-G GAMING WIFI Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Micro Atx ROG STRIX B850-G GAMING WIFI

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7682


Product Specifications



Product Name:

ASUS ROG STRIX B850-G GAMING WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

asus



Model Number:

ROG STRIX B850-G GAMING WIFI



EAN:

4711636092265



Package Type:

Retail



Warranty:

3 Years



BIOS:


256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

rog.asus /motherboards/rog-strix/rog-strix-b850-g-gaming-wifi/helpdesk_qvl_cpu/



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8000 (O.C.)



Max. Memory Support:

256GB



PCI Express 5.0 x16:

2



S-ATA 6Gb/s Port(s):

2



M.2 Socket(s):


1 x PCIe Gen 5.0 x4
3 x PCIe Gen 4.0 x4




LAN Speed:


1 x Intel 2.5Gb Ethernet
ASUS LANGuard




Wireless NIC:

Wi-Fi 7



Wireless Technology:


2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.




Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

4



Back USB 10Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-C:

1



Back USB 20Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Button(s):


1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

1



USB 10Gbps Header(s):

1



Front Panel Audio Connector:

1



Internal Other Port(s):


3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x Thermal Sensor header




Internal Button(s):

1 x Start



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

27.50cm



Package Length:

28.50cm



Package Height:

7.25cm



Net Weight:

1.38Kg



Gross Weight:

2.05Kg



Special Features:

Unleash next-gen performance with the ROG Strix B850-G Gaming WiFi. Built with a sleek white PCB and featuring support for AMD Ryzen 9000 Series processors and cutting-edge DDR5 memory, this motherboard is equipped for top-tier gaming. PCIe 5.0, USB 20Gbps Type-C and WiFi 7 ensure unmatched speed and performance.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
3 x M.2 rubbers
1 x Screw package for M.2 SSD
1 x Quick start guide
