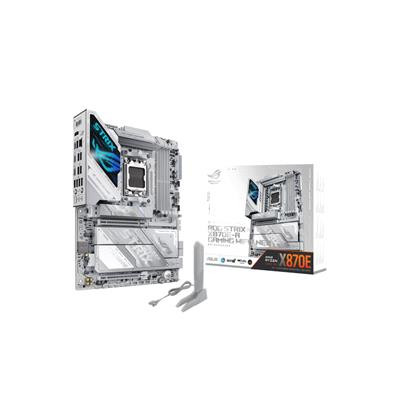

Asus Rog Strix X870e-A Gaming Wifi7 Neo Socket Am5/X870e/Ddr5/S-Ata 6Gb/S/Atx ROG STRIX X870E-A GAMING NEO

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
8035


Product Specifications



Product Name:

ASUS ROG STRIX X870E-A GAMING WIFI7 NEO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

ROG STRIX X870E-A GAMING NEO



EAN:

4711636491617



Package Type:

Retail



Warranty:

3 Years



BIOS:


64 MB (512Mb) Flash ROM
UEFI AMI BIOS




Chipset:

AMD X870E



CPU Interface:

Socket AM5



CPU Support:

rog.asus /uk/motherboards/rog-strix/rog-strix-x870e-a-gaming-wifi7-neo/helpdesk_qvl_cpu/



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8600+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):


2 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:


1 x Realtek 5Gb Ethernet
ASUS LANGuard




Wireless NIC:

Wi-Fi 7



Wireless Technology:


2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth




Bluetooth:

v5.4



On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080



On-Board Video:

Processor with integrated graphics is required



Back USB4 Port(s) Type-C:

2



Back USB 5Gbps Port(s) Type-A:

4



Back USB 10Gbps Port(s) Type-A:

5



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

2



Back S/PDIF Output Port(s):

1



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):


1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 3.0 Header(s):

3



USB 5Gbps Header(s):

3



USB 20Gbps Header(s):

1



Front Panel Audio Connector:

1



Internal Other Port(s):


3 x Addressable RGB Gen 2 headers
1 x Thermal Sensor header




Internal Button(s):

1 x Start



Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

35cm



Package Height:

7cm



Net Weight:

1.85Kg



Gross Weight:

2.82Kg



Special Features:

Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen 9000 Series processors. PCIe 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor - and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP - simplify setup and deliver optimized DDR5 performance.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x DDR5 fan holder
1 x Screw package for cooling kit
1 x ROG assistant fan (60mm)
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Latch package
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubbers
1 x Quick start guide
