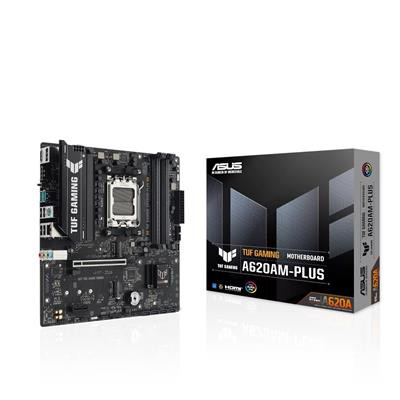

Asus TUF GAMING A620AM-PLUS Socket Am5/A620a/Ddr5/S-Ata 6Gb/S/Micro Atx TUF GAMING A620AM-PLUS

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7730


Product Specifications



Product Name:

ASUS TUF GAMING A620AM-PLUS (Socket AM5/A620A/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

asus



Model Number:

TUF GAMING A620AM-PLUS



EAN:

4711636231824



Package Type:

Retail



Warranty:

3 Years



BIOS:


256 Mb Flash ROM
UEFI AMI BIOS




Chipset:

AMD A620A



CPU Interface:

Socket AM5



CPU Support:

asus /motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620am-plus/helpdesk_qvl_cpu?model2Name=TUF-GAMING-A620AM-PLUS



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 7600+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/5/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:


1 x Realtek 2.5Gb Ethernet
TUF LANGuard




On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back PS/2 Keyboard/Mouse Port:

1



Back USB 2.0 Port(s):

4



Back USB 10Gbps Port(s) Type-A:

2



Back HDMI Port(s):

1



Back DisplayPort(s):

2



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Button(s):

1 x BIOS FlashBack



24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

1



USB 5Gbps Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



S/PDIF Out Header(s):

1



Internal Other Port(s):

3 x Addressable RGB Gen 2 headers



Form Factor:

Micro ATX



Product Width:

244mm



Product Length:

244mm



Package Width:

27.5cm



Package Length:

27.5cm



Package Height:

6.75cm



Net Weight:

0.82Kg



Gross Weight:

1.30Kg



Special Features:

ASUS TUF GAMING A620AM-PLUS takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x I/O shield
2 x Screw packages for M.2 SSD
1 x TUF GAMING sticker
1 x Quick start guide
