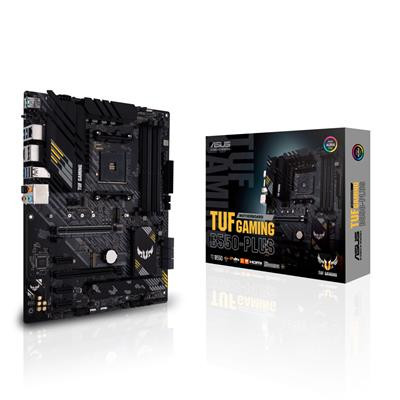

Asus TUF GAMING B550-PLUS Socket Am4/B550/Ddr4/S-Ata 600/Atx TUF GAMING B550-PLUS

ASUS AM4 TUF GAMING B550-PLUS
SKU: 119008
Product Group:Motherboards
Manufacturer:ASUS
SKU:119008
Product Name:ASUS TUF GAMING B550-PLUS (Socket AM4/B550/DDR4/S-ATA 600/ATX)
Web Address:www.asus.com
Model Number:TUF GAMING B550-PLUS
EAN:4718017749435
UPC:192876749432
Package Type:Retail
Warranty:3 Years
BIOS:256 Mb Flash ROM
UEFI AMI BIOS

Chipset:AMD B550
CPU Interface:Socket AM4
RAM Technology:DDR4 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR4 4400 (O.C.)
Max. Memory Support:128GB
PCI Express 3.0 x16:1
PCI Express 4.0 x16:1
PCI Express 3.0 x1:3
S-ATA 6Gb/s Port(s):6
RAID:Raid 0/1/10
M.2 Socket(s):2
On-Board LAN:1 x Realtek RTL8125B 2.5Gb Ethernet
On-Board Audio:Realtek ALC S1200A 7.1-Channel High Definition Audio CODEC
On-Board Video:AMD processor with integrated graphics is required
Back USB 2.0 Port(s):2
Back USB 3.2 Port(s) Type-A Gen 1:4
Back USB 3.2 Port(s) Type-A Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):5
Back S/PDIF Output Port(s):1
Back Button(s):1 x BIOS FlashBack
24-pin ATX Power:1
8-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.1 Header(s) Gen 1:1
Thunderbolt Header(s):1
COM Port Header(s):1
Front Panel Audio Connector:1
TPM Header(s):1
Internal Other Port(s):1 x AURA Addressable Gen 2 Header
2 x AURA RGB Headers
1 x Thermal Sensor Header

Form Factor:Standard ATX
Product Width:244mm
Product Length:305mm
Package Width:27.5cm
Package Length:34cm
Package Height:7cm
Gross Weight:1.47Kg
Special Features:ASUS TUF Protection
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
AURA Sync

Package Contents:Motherboard
2 x SATA 6GB/s Cables
1 x IO Shield
1 x M.2 Rubber Package
1 x M.2 SSD Screw Packages
1 x M.2 Key E Screw Package
1 x TUF Gaming Sticker
1 x Support Disl
1 x TUF Certification Card
1 x User Manual
