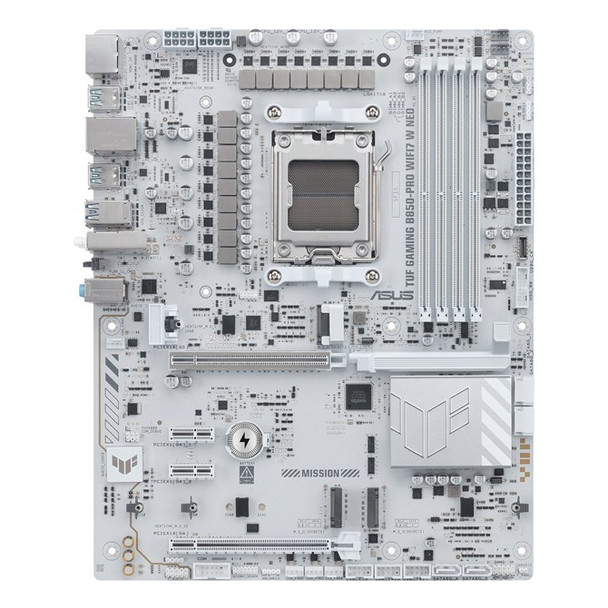

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX 90MB1NW0-M0EAY0

12V power connector : Yes


1st M:2 largest key size : 2280


ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC1220P


Audio output channels : 7.1 channels


BIOS memory size : 512 Mbit


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.4


Chassis intrusion connector : Yes


Clear CMOS button : Yes


Compatible processor series : AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series


Component for : PC


CPU fan connector : Yes


Depth : 244 mm


DisplayPorts quantity : 1


EAN : 4711636435994


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 2.5 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 1


Front panel audio connector : Yes


HDMI ports quantity : 1


Height : 50 mm


Manufacturer : ASUS


Manufacturer Part Code : 90MB1NW0-M0EAY0


Maximum internal memory : 256 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Model : 1


Motherboard chipset : AMD B850


Motherboard chipset family : AMD


Motherboard form factor : ATX


Number of chassis fan connectors : 4


Number of COM connectors : 1


Number of CPU fan connectors : 1


Number of HDDs supported : 4


Number of M:2 (M) slots : 3


Number of memory slots : 4


Number of SATA III connectors : 4


Number of storage drives supported : 7


Number of water pump connectors : 1


Package depth : 273 mm


Package height : 68 mm


Package weight : 1.94 kg


Package width : 353 mm


Parallel processing technology support : Not supported


PCI Express x1 (Gen 4:x) slots : 2


PCI Express x16 (Gen 4:x) slots : 1


Processor manufacturer : AMD


Processor socket : Socket AM5


Product colour : White


Product name : TUF GAMING B850-PRO WIFI7 W NEO


RAID levels : 0, 1, 5, 10


RAID support : Yes


S/PDIF out connector : Yes


Supported memory clock speed (max) : 9000 MHz


Supported memory types : DDR5-SDRAM


Supported storage drive interfaces : M.2, SATA III


Supported storage drive types : HDD & SSD


Thunderbolt headers : 1


Top Wi-Fi standard : Wi-Fi 7 (802.11be)


USB 2:0 connectors : 3


USB 2:0 ports quantity : 2


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 1


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 2


USB 3:2 Gen 2 (3:1 Gen 2) Type-C ports quantity : 2


USB 3:2 Gen 2x2 connectors : 1


Weight : 1.35 kg


Width : 305 mm


Wi-Fi : Yes


Wi-Fi standards : Wi-Fi 7 (802.11be)


Windows operating systems supported : Windows 11


WLAN controller model : Realtek RTL8922AE
