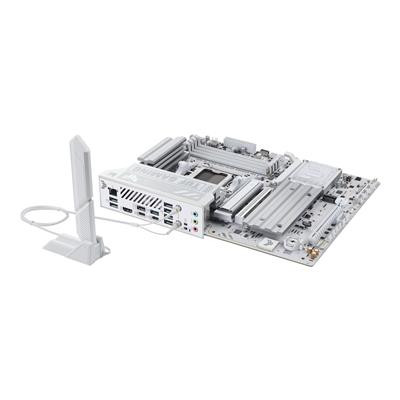

Asus TUF GAMING X870-PRO WIFI7 W NEO Socket Am5/X870/Ddr5/S-Ata 6Gb/S/Atx TUF GAMING X870-PRO WIFI7 W NEO

Product Group:

Motherboards



Manufacturer:

ASUS



SKU:
7847


Product Specifications



Product Name:

ASUS TUF GAMING X870-PRO WIFI7 W NEO (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)



Web Address:

www.asus



Model Number:

TUF GAMING X870-PRO WIFI7 W NEO



EAN:

4711636425247



Package Type:

Retail



Warranty:

3 Years



BIOS:


64MB (512Mb) Flash ROM
UEFI AMI BIOS




Chipset:

AMD X870



CPU Interface:

Socket AM5



CPU Support:

asus /motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870-pro-wifi7-w-neo/helpdesk_qvl_cpu?model2Name=TUF-GAMING-X870-PRO-WIFI7-W-NEO



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8600+ (O.C.)



Max. Memory Support:

256GB



PCI Express 4.0 x16:

1



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

2



RAID:

Raid 0/1/5/10



M.2 Socket(s):


2 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4




LAN Speed:


1 x Realtek 5Gb Ethernet
TUF LANGuard




Wireless NIC:

Wi-Fi 7



Wireless Technology:


2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth




Bluetooth:

v5.4



On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

1



Back USB 5Gbps Port(s) Type-A:

4



Back USB 10Gbps Port(s) Type-A:

3



Back USB 40Gbps Port(s) Type-C:

2



Back HDMI Port(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

1 x Wi-Fi module



Back Button(s):


1 x BIOS FlashBack
1 x Clear CMOS




24-pin ATX Power:

1



8-pin ATX Power:

2



USB 2.0 Header(s):

3



USB 5Gbps Header(s):

1



USB 20Gbps Header(s):

1



COM Port Header(s):

1



Front Panel Audio Connector:

1



S/PDIF Out Header(s):

1



Internal Other Port(s):


3 x Addressable RGB Gen 2 headers
1 x Thermal Sensor header




Form Factor:

Standard ATX



Product Width:

244mm



Product Length:

305mm



Package Width:

27cm



Package Length:

35cm



Package Height:

7cm



Net Weight:

4.38Kg



Gross Weight:

6.50Kg



Special Features:

ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.



Package Contents:


Motherboard
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x Quick start guide
