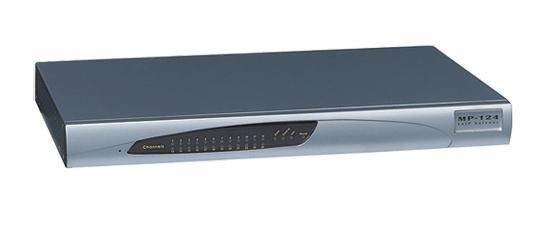

AudioCodes MP124/24S/AC/SIP Mediapack 124 MP124/24S/AC/SIP

AudioCodes� MediaPack 1xx series of Analog VoIP Gateways are cost-effective, stand-alone VoIP gateways that provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. The MediaPack 1xx series gateways support a wide variety of service provider and enterprise applications:
- Service providers can use MediaPack gateways to connect Multi-Tenant Units (MTUs), IP Centrex subscribers, payphones, and rural users over wireless and satellite links
- Enterprises can use MediaPack gateways to connect their legacy PBX systems over an IP infrastructure. In addition, in IP Centrex and central IP-PBX applications, MediaPack enhances remote location availability and provides Stand Alone Survivability (SAS) when there is no IP connection between branch locations and a central SIP server, SIP proxy or central IP-PBX

The MediaPack 1xx gateways are fully interoperable with leading softswitches, SIP servers and H.323 systems.

Features

- Support for 2 to 24 analog ports
- T.38 fax compliant
- Rich subscriber feature set: 3-way conference with local mixing, call pickup, hunt groups, call forwarding, call hold and call transfer
- Echo cancellation, jitter buffer, voice activity detection (VAD) and comfort noise generation (CNG)
- Complies with MGCP, H.323v4 and SIP control protocols

Benefits

- Leverage investment in existing analog telephone, modem, and fax systems � easing VoIP migration
- Lifeline for fallback to PSTN for E911 (Emergency number PSTN breakthrough) or upon network/power failure (FXO and/or FXS configurations)
- Standalone Survivability (SAS) keeps your business running in the event of a network failure

Design



Certification



EN55022 , CFR, EN55024, EN61000-3-3, EN61000-3-2, VCCI Class X1


LED indicators



Y, Yes


Safety



EN60950-1


Features



Interface



24 x FXS


Voice codecs



G.711, G.722, G.723.1, G.726, G.729A, G.729B


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100Base-T(X)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



5 - 40 �C


Storage temperature (T-T)



-20 - 85 �C


Package dimensions



Gross Weight (Package, kg)



1.16 kg


Packaging content



AC adapter included



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Power



Input frequency



50/60 Hz


Input voltage



100 - 240 V


Product dimensions



Net Weight (Product, kg)



0.89 kg


Protocols



Management protocols



BootP, DHCP, TFTP, HTTP, DHCP, EMS, SNMP V3


Security



Security algorithms



HTTPS, SRTP, SSL/TLS


Vendor information



Brand Name


AudioCodes


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



445 x 269 x 44 mm
