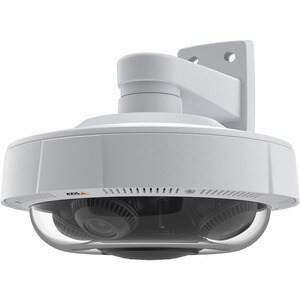

Axis 02218-001. Type: Ip Security Camera Placement Supported: Indoor & Outdoor C 02218-001

Axis 02218-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range (panoramic camera): 3 - 6 mm, Viewing angle, vertical (panoramic camera): 53??, Viewing angle, horizontal (panoramic camera): 360?? Ideal for large indoor and outdoor areas, AXIS P3727-PLE lets you monitor four different areas with a single camera, around the clock, and even in challenging lighting. You can count on excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. Wide area surveillance with high-quality overview-24/7 AXIS P3727-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360?? IR illumination with individually controllable LEDs and an automatic IR cut filter. So, you'll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness as well as undistorted colors during the day. Thanks to Forensic WDR it ensures clarity when there's both dark and light areas in the scene. Furthermore, it's possible to run AXIS Object Analytics on one of the four channels allowing you to detect and classify people and vehicles entering a user-defined area or crossing a user-defined virtual line. Brilliant Design This compact, flexible multidirectional camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360?? coverage. When mounted on corners, it offers 270?? coverage. With a tamper-resistance casing and integrated IP66/IP67 rated weather shield that protects against rain, snow, and sunlight, AXIS P3727-PLE is ideal for outdoor wall mounting. It allows for flexible positioning of all four varifocal camera heads so they can be moved and rotated to provide the optimal field of view. And, each head can be controlled individually so you can monitor scenes in four directions. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. Cost-efficient and secure With four camera heads in one camera, AXIS P3727-PLE offers fast, accurate, and cost-effective installation. That's because there's only one camera to install, one cable to draw, and one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Plus, remote zoom and focus capabilities eliminate the need for hands-on fine tuning. And, with snap-fit installation, the casing simply snaps on. AXIS P3727-PLE offers enhanced security functionality to prevent unauthorized access and safeguard your system.
Interfaces/Ports

Network (RJ-45)Yes

Power Description

Power Source TypePoE

Storage

Storage TypeMemory Card

Exposure

Longest Shutter Speed2 Second
Shortest Shutter Speed1/32500 Second

Network & Communication

Connectivity TechnologyWired
Remote ManagementYes

Environmental Conditions

Minimum Operating Temperature-30??C
Maximum Operating Temperature50??C
Maximum Operating Humidity100%

Display & Graphics

Color SupportedColour
Image Sensor TypeRGB CMOS
Effective Camera Resolution2 Megapixel
Field of ViewHorizontal field of view: 96??-49?? - Vertical field of view: 53??-27?? - Diagonal field of view: 113??-55??
Number of Sensors4

Technical Information

Recording FormatsFull HD
Night VisionYes
HD RecordingYes
Night Vision Distance15 m
Number of IR LEDs4
Night Vision TypeInfrared

Lens

Lens TypeVarifocal
Optical Zoom2x
Maximum Aperturef/1.8
Maximum Focal Length6 mm
Minimum Focal Length3 mm
Minimum Aperturef/2.6
Lens IncludedYes

Video

Video FormatsH.264 BP
H.264
H.264 (MPEG-4 Part 10/AVC)
H.264 (MP)
Motion JPEG
H.264 HP
H.264B
H.264H
H.264M
H.265
H.265 (MP)
H.265 (MPEG-H Part 2/HEVC)
Maximum Video Resolution1920 x 1080
Maximum Frame Rate30 fps


General Information

Product TypeNetwork Camera
Manufacturer Part Number02218001
axis/uk
ManufacturerAxis Communications
Product ModelP3727-PLE
Product NameP3727-PLE Panoramic Camera
Product SeriesP37
Brand NameAXIS

Miscellaneous

FeaturesPrivacy Masking
Built-in Infrared Illuminator
Active Tampering Alarm
HTTPS Encryption
Day/Night
Cross Line Detection
SD Card Local Storage
Password Protection
Removable IR Cut-off Filter
White Balance
Motion Detection
TAA CompliantYes
Indoor/OutdoorIndoor/Outdoor
Impact Protection RatingIK09
Ingress Protection RatingIP66
IP67

Physical Characteristics

Weight (Approximate)2 kg
DurabilityImpact Resistant
Snow Resistant
Weather Resistant
Form FactorDome
Mount TypeRecessed Mount
Bracket Mount
Ceiling Mount
Conduit Mount
Junction Box Mount
Parapet Mount
Pendant Mount
Pole Mount
Wall Mount
Diameter255 mm
Height92 mm
Product ColorWhite
Color FamilyWhite
