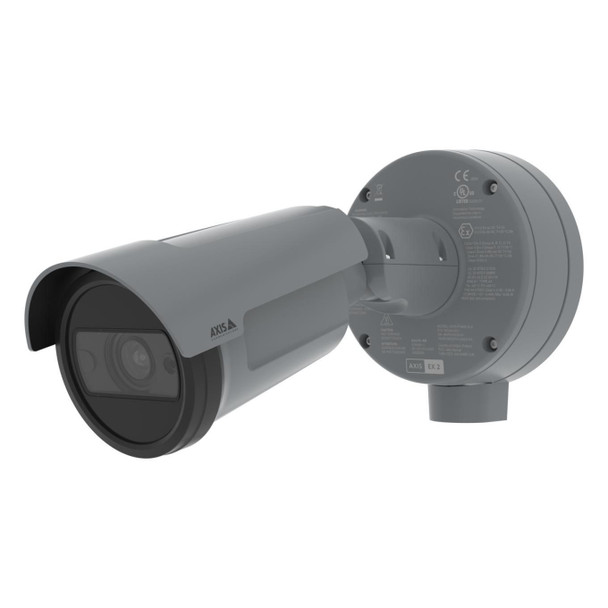

Axis 02534-001 P1468-XLE 02534-001

Explosion-protected (ATEX: II 3 G Ex ec IIC T4 Gc, II 2 D Ex tb IIIC 135C Db; IECEx: Ex ec IIC T4 Gc, Ex tb IIIC T135C Db; cULus: Class I Div 2 Group ABCD T4, Class II Div 2 Group FG T135C; Class III Div 2, Class I Zone 2 AEx ec IIC T4 Gc, Zone 21 AEx IIIC T135C Db) fixed bullet camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0 and OptimizedIR. Varifocal 6-13 mm P-iris lens with remote zoom and focus. Multiple, individually configurable H.264/H.265 with Zipstream and Motion JPEG. 8MP stream up to 60 fps, 30fps with WDR. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics, Smoke alert analytic. Video motion detection, shock detection and active tampering alarm.
Barrel distortion correction, defogging and scene profiles. Audio in and supervised I/O port, microSD memory card slot for local storage. MQTT Support. AXIS Edge Vault for added cyber security. OptimizedIR, a power-efficient IR LED technology. Integrated bracket for easy mounting on wall and ceiling.
Powered by IEEE 802.3af/802.3at Type 1 Class 3 and 10-28V DC power with redundancy. Operating conditions -40 �C to 60 �C (-40 �F to 140 �F). Includes removable sunshield.

Audio



Audio detection



Yes


Audio formats supported



AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM


Audio system



2-way


Camera



Camera shutter speed



1/66500 - 2 Second


Minimum illumination



0.07 lx


Design



Form factor



Bullet


Housing material



Aluminium, Polycarbonate (PC)


IK code



IK10


International Protection (IP) code



IP66, IP67


Mounting type



Ceiling/wall


Product colour



Grey


Image sensor



Number of sensors



1


Optical sensor size



1/1.2 "


Progressive scan



Yes


Sensor type



CMOS


Lens system



Focal length range



6.2�12.9 mm


Number of lenses



1


Optical zoom



2.08 x


Zoom capability



Yes


Network



Bluetooth



No


Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Quality of Service (QoS) support



Yes


Wi-Fi



No


Night vision



Infra-red wavelength



850 nm


LED type



IR


Night vision



Yes


Night vision distance



40 m


Operational conditions



Operating relative humidity (H-H)



10 - 100 %


Operating temperature (T-T)



-40 - 60 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Package dimensions



Depth (package,cm)



26 cm


Gross Weight (Package, kg)



1.64 kg


Height (package,cm)



18 cm


Width (package,cm)



14 cm


Packaging content



Drilling template included



Yes


Manual



Yes


Mounting brackets included



Yes


Number of cameras



1


Performance



Certification



CE, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A


Connectivity technology



Wired


Day/night mode



Yes


Infrared (IR) cut-off filter



Yes


Languages support



Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian


Number of languages



11


Placement supported



Indoor & outdoor


PTZ modes



Digital PTZ


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Terminal block port



Yes


Power



Power consumption (max)



12.95 Watt


Power consumption (typical)



7.7 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



1.64 kg


Product Width



28 cm


Security



Active tampering alarm



Yes


Alert notification type



E-mail


Digest authentication



Yes


HTTPS encryption



Yes


IP address filtering



Yes


Password protection



Yes


Pixel counter



Yes


Security algorithms



256-bit AES-XTS, EAP-TLS


Video motion detection



Yes


Storage



Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



8192 MB


Internal memory



2048 MB


Technical details



Doesn't contain



BFR, PVC


Vendor information



Brand Name


Axis


Video



Bit rate



Configurable bit rate


Bit rate control



Variabel bithastighed (VBR)


Flip & mirror



Yes


Frame rate



60 fps


Maximum resolution



3840 x 2160 Pixels


Privacy masking



Yes


Supported graphics resolutions



1280 x 720 (HD 720)


Text caption overlay



Yes


Video compression formats



H.264, H.265, M-JPEG


Video intelligence analytic



Yes


Video recording



Yes


Video streaming



Yes


Weight & dimensions



Diameter



13.2 cm
