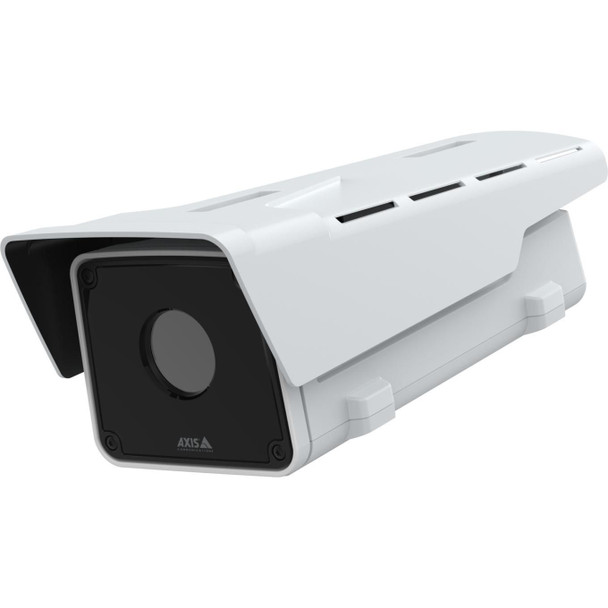

Axis 02649-001 Q2101-TE 7 mm 8.3 fps 02649-001

Q2101-TE is an ARTPEC 8 based thermometric camera that lets you remotely monitor temperatures from -40 �C to 350 �C (-40 �F to 660 �F).
Robust and impact-resistant (IK10 and IP66/67), it includes built-in cybersecurity features to help safeguard your system. The product is halogen free. Edge-to-edge functionality lets you connect network speakers and other Axis network devices.
Q2101-TE can be PT-mounted (PT head sold separately). When PT-mounted, Q2101-TE supports the Axis unique feature of Thermometric guard tour, giving you the possibility to configure 10 polygonal detection areas per preset. With up to 256 presets you can monitor very large and complex scenes for specific temperature levels and temperature change rates.
With early fire detection analytics (included), it�s possible to set triggers and preventively act on early signs of fire. The Early Fire Detection ACAP comes with a smart filtering function eliminating many false alarms, commonly originating from work vehicles such as truck, excavators and cars.

Audio



Audio system



2-way


Audio system full duplex



Yes


Camera



Camera pan control



Yes


Camera pixel size



17 �m


Camera tilt control



Yes


Field of view (FOV) angle



55 �


Design



Form factor



Box


Housing material



Aluminium


IK code



IK10


International Protection (IP) code



IP66, IP67


Mounting type



Wall


Product colour



White


Image sensor



Sensor type



Microbolometer


Sensor type (thermal module)



Noise equivalent temperature difference (NETD)


Lens system



Lens diameter



7 mm


Maximum aperture number



1.18


Network



Bluetooth



No


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Quality of Service (QoS) support



Yes


Wi-Fi



No


Night vision



Night vision



No


Operational conditions



Operating relative humidity (H-H)



10 - 100 %


Operating temperature (T-T)



-40 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Package dimensions



Depth (package,cm)



56 cm


Gross Weight (Package, kg)



4.5 kg


Height (package,cm)



23 cm


Width (package,cm)



21 cm


Packaging content



Manual



Yes


Number of cameras



1


Packaging content



TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key


Performance



Built-in processor



Yes


Certification



CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM


Connectivity technology



Wired


Languages support



Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian


Number of languages



12


Placement supported



Indoor


Processor model



ARTPEC-8


Thermal module



Yes


Thermal sensitivity (NETD)



40 mK


Type



IP security camera


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Headphone outputs



2


RS-485 ports



2


Terminal block port



Yes


Power



DC output voltage



8, 9, 10, 12, 15, 16, 24, 28


Power consumption (max)



25.5 Watt


Power consumption (Power over Ethernet (PoE))



4.6 Watt


Power consumption (typical)



4.1 Watt


Power source type



DC, PoE


Product dimensions



Net Weight (Product, kg)



4.5 kg


Product Depth



40.4 cm


Product Height



15.9 cm


Product Width



15 cm


Security



Active tampering alarm



Yes


Digest authentication



Yes


Fire detection



Yes


IP address filtering



Yes


Mirror



Yes


Network access storage (NAS)



Yes


Password protection



Yes


Pixel counter



Yes


Temperature measurement accuracy



5 �C


Temperature measurement range



-40 - 350 �C


Temperature sensor



Yes


Video motion detection



Yes


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



8192 MB


Internal memory



2048 MB


Vendor information



Brand Name


Axis


Video



Frame rate



8.3 fps


Gain control type



Auto


Maximum resolution



768 x 576 Pixels


Privacy masking



Yes


Video compression formats



H.264, H.265, M-JPEG


Video recording



Yes


Video streaming



Yes
