Axis
Axis 02677-001 M4215-LV 02677-001
- UPC:
- 7331021081529
- MPN:
- 02677-001
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description

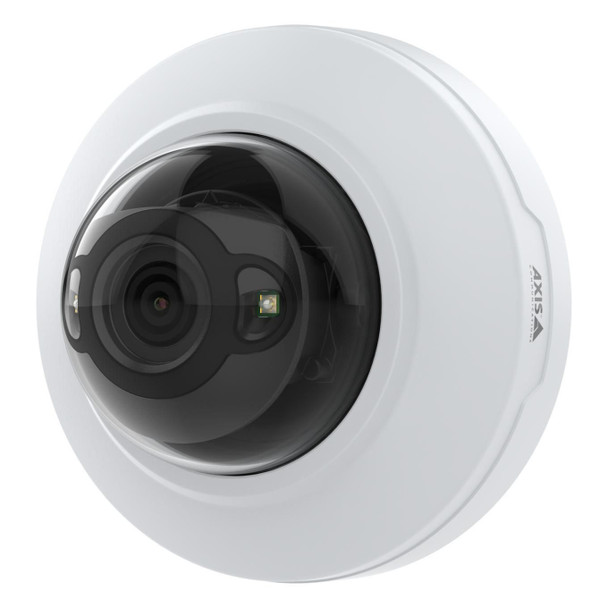

Compact, varifocal, D/N mini dome with built-in IR illumination and dust- and vandal-resistant casing for easy indoor mounting. 3.6-6.6 mm with remote zoom and focus simplifying the installation. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; 2MP for wide 16:9 view with up to 30 fps. Zipstream for reduced bandwidth and storage. Includes a Deep Learning Processing Unit (DPLU) for advanced analytics. Axis Object Analytics, video motion detection and active tampering alarm. HDMI output. Audio and I/O with compatible Axis portcast accessories. MicroSD memory card slot for local video storage. AXIS Edge Vault for increased Cyber Security
Camera
Angle of rotation
105 �
Camera pan control
Yes
Camera shutter speed
1/25000 - 1/5 Second
Camera tilt control
Yes
Lens viewing angle, horizontal
93 - 47 �
Lens viewing angle, vertical
50 - 26 �
Minimum illumination
0.14 lx
Pan range
-180 - 180 �
Tilt angle range
-40 - 65 �
Design
Form factor
Dome
Housing material
Aluminium, Polycarbonate (PC)
IK code
IK08
International Protection (IP) code
IP42
Mounting type
Ceiling/wall
Product colour
White
Image sensor
Optical sensor size
1/2.8 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Maximum aperture number
2.6
Minimum aperture number
1.7
Zoom capability
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Wi-Fi
No
Night vision
Night vision
No
Operational conditions
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-30 - 65 �C
Package dimensions
Depth (package,cm)
13.5 cm
Gross Weight (Package, kg)
0.53 kg
Height (package,cm)
9 cm
Width (package,cm)
12.5 cm
Packaging content
Manual
Yes
Number of cameras
1
Packaging content
Owner authentication key, virtual client license for H.264/H.265
Performance
Built-in processor
Yes
Certification
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Connectivity technology
Wired
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Russian, Swedish, Thai, Turkish, Vietnamese
Number of languages
19
Placement supported
Indoor
PTZ control
Yes
PTZ modes
Digital PTZ
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Power
Power consumption (max)
9.5 Watt
Power consumption (Power over Ethernet (PoE))
4.8 Watt
Power source type
PoE
Product dimensions
Net Weight (Product, kg)
0.53 kg
Product Height
7.1 cm
Security
Active tampering alarm
Yes
Digest authentication
Yes
IP address filtering
Yes
Mirror
Yes
Network access storage (NAS)
Yes
Password protection
Yes
Pixel counter
Yes
Video motion detection
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
Vendor information
Brand Name
Axis
Video
Frame rate
30 fps
Maximum resolution
1920 x 1080 Pixels
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Privacy masking
Yes
Total megapixels
2 MP
Video compression formats
H.264, H.265, M-JPEG
Video recording
Yes
Video streaming
Yes
Weight & dimensions
Diameter
12 cm
View AllClose
Camera
Angle of rotation
105 �
Camera pan control
Yes
Camera shutter speed
1/25000 - 1/5 Second
Camera tilt control
Yes
Lens viewing angle, horizontal
93 - 47 �
Lens viewing angle, vertical
50 - 26 �
Minimum illumination
0.14 lx
Pan range
-180 - 180 �
Tilt angle range
-40 - 65 �
Design
Form factor
Dome
Housing material
Aluminium, Polycarbonate (PC)
IK code
IK08
International Protection (IP) code
IP42
Mounting type
Ceiling/wall
Product colour
White
Image sensor
Optical sensor size
1/2.8 "
Progressive scan
Yes
Sensor type
CMOS
Lens system
Maximum aperture number
2.6
Minimum aperture number
1.7
Zoom capability
Yes
Network
Bluetooth
No
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Networking standards
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Quality of Service (QoS) support
Yes
Wi-Fi
No
Night vision
Night vision
No
Operational conditions
Operating relative humidity (H-H)
10 - 85 %
Operating temperature (T-T)
0 - 45 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-30 - 65 �C
Package dimensions
Depth (package,cm)
13.5 cm
Gross Weight (Package, kg)
0.53 kg
Height (package,cm)
9 cm
Width (package,cm)
12.5 cm
Packaging content
Manual
Yes
Number of cameras
1
Packaging content
Owner authentication key, virtual client license for H.264/H.265
Performance
Built-in processor
Yes
Certification
CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
Connectivity technology
Wired
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Languages support
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Russian, Swedish, Thai, Turkish, Vietnamese
Number of languages
19
Placement supported
Indoor
PTZ control
Yes
PTZ modes
Digital PTZ
Type
IP security camera
Wide Dynamic Range (WDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Power
Power consumption (max)
9.5 Watt
Power consumption (Power over Ethernet (PoE))
4.8 Watt
Power source type
PoE
Product dimensions
Net Weight (Product, kg)
0.53 kg
Product Height
7.1 cm
Security
Active tampering alarm
Yes
Digest authentication
Yes
IP address filtering
Yes
Mirror
Yes
Network access storage (NAS)
Yes
Password protection
Yes
Pixel counter
Yes
Video motion detection
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory
512 MB
Internal memory
1024 MB
Vendor information
Brand Name
Axis
Video
Frame rate
30 fps
Maximum resolution
1920 x 1080 Pixels
Noise reduction
Yes
Noise reduction technology
2D noise reduction, 3D noise reduction
Privacy masking
Yes
Total megapixels
2 MP
Video compression formats
H.264, H.265, M-JPEG
Video recording
Yes
Video streaming
Yes
Weight & dimensions
Diameter
12 cm
