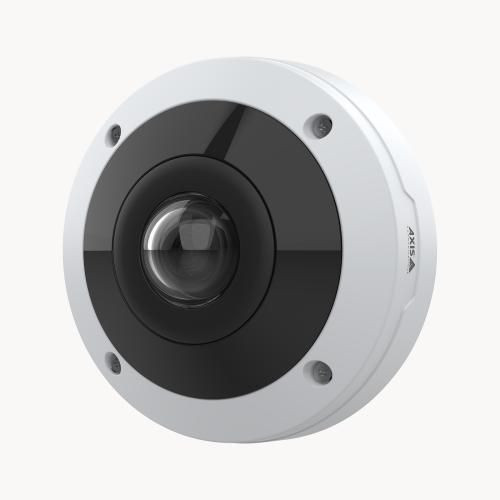

Axis 02833-001 AXIS M4317-PLR 02833-001

AXIS M4317-PLR is Onboard panoramic camera for buses.
AXIS M4317-PLR is a discreet, IK10 and IP66 ready dome designed with 6 MP resolution and a stereographic lens. It can deliver multiple 360� or 180� panoramic views at up to 30 fps with no blind spots. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. Built on ARTPEC-8, it offers powerful artificial intelligence and deep learning analytics on the edge.
AXIS M4317-PLVE comes with build-in configurable IR, making it perfect for low light situations. Signed firmware and secure boot ensure firmware authenticity.
AXIS M4317-PLR as a built-in RJ45 connector.

Camera



Camera shutter speed



1/33500 - 0.2 Second


Lens viewing angle, horizontal



182 �


Lens viewing angle, vertical



182 �


Design



Form factor



Dome


Housing material



Aluminium, Polycarbonate (PC)


IK code



IK10


International Protection (IP) code



IP66


Mounting type



Ceiling


Product colour



White


Image sensor



Optical sensor size



1/1.8 "


Progressive scan



Yes


Sensor type



CMOS


Network



Bluetooth



No


Ethernet interface type



Fast Ethernet


Ethernet LAN



Yes


Networking standards



IEEE 802.3af, IEEE 802.3at


Wi-Fi



No


Night vision



LED type



IR


Night vision



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 100 %


Operating temperature (T-T)



-40 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 �C


Package dimensions



Depth (package,cm)



76 cm


Gross Weight (Package, kg)



1.095 kg


Height (package,cm)



10.9 cm


Width (package,cm)



66 cm


Packaging content



Number of cameras



1


Panoramic camera



Sensor type (panoramic camera)



CMOS


Supported graphics resolutions (panoramic camera)



384 x 288, 2560 x 1440, 2560 x 1920


Performance



Connectivity technology



Wired


Day/night mode



Yes


Dynamic range



120 dB


Placement supported



Outdoor


PTZ control



Yes


PTZ modes



Digital PTZ


Type



IP security camera


Wide Dynamic Range (WDR)



Yes


Power



Power consumption (Power over Ethernet (PoE))



5.7 Watt


Power source type



PoE


Product dimensions



Net Weight (Product, kg)



1 kg


Product Height



7 cm


Security



IP address filtering



Yes


Security algorithms



EAP-TLS, MSCHAPv2, PEAP, TLS


Storage



Built-in HDD



No


Card reader integrated



Yes


Compatible memory cards



MicroSD (TransFlash), MicroSDHC, MicroSDXC


Flash memory



8192 MB


Internal memory



2048 MB


Vendor information



Brand Name


Axis


Video



Frame rate



60 fps


Maximum resolution



2560 x 1920 Pixels


Noise reduction



Yes


Noise reduction technology



2D noise reduction, 3D noise reduction


Privacy masking



Yes


Supported graphics resolutions



256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920


Total megapixels



6 MP


Video compression formats



H.264, H.265


Video streaming



Yes


Weight & dimensions



Diameter



14.9 cm
