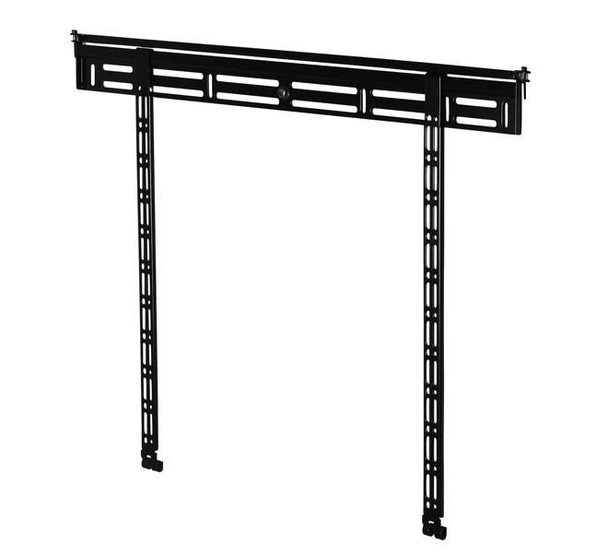

B-Tech BT8220/B 65" TFT BLACK FIXED WALL BT8220/B

Designed for medium sized screens up to 80kg, the ultra-slim BT8220 mounts screens just 14mm from the wall and features post installation screen alignment, B-Tech's "On Wall Levelling System" and simple 'hook-on' installation to make screen mounting as quick and simple as possible. The BT8220 also features B-Tech's patented 'Torsion-Lock' security to help prevent un-authorised removal of the screen. All mounting hardware included.

Design



Product colour



Black


Ergonomics



Distance to the wall (min)



1.4 cm


Mounting



Maximum screen size



80 "


Maximum VESA mount



800 x 500 mm


Maximum weight capacity



70 kg


Minimum VESA mount



75 x 75 mm


Mounting type



Wall


Number of displays supported



1


Panel mounting interface



75 x 75, 100 x 100, 200 x 100, 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400, 800 x 400, 800 x 500


Suitable for



Computer monitor / TV


Suitable for computer monitor



Yes


Package dimensions



Gross Weight (Package, kg)



13.6 kg


Packaging content



Mounting kit



Yes


Product dimensions



Net Weight (Product, kg)



13.4 kg


Product Depth



10 cm


Product Height



62.8 cm


Product Width



89.5 cm


Vendor information



Brand Name


B-Tech


Homepage



www.btechavmounts.com/BT8220


Warranty



10 Year(s)
