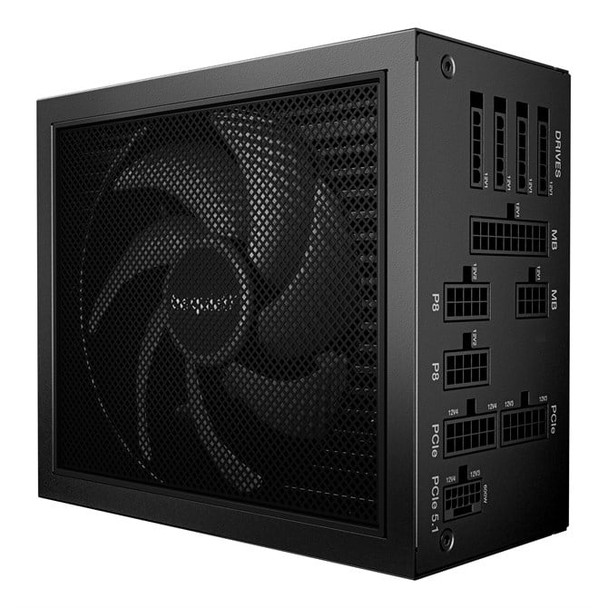

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX BP020EU

Specs




Power


Total power

The total power that is needed by the device, or the total power produced by the device.
00 W


Peak power

This is the maximum power required by the device or peak music power.
00 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Maximum input current (@110V)
A


Maximum input current (@220V)

5 A


Power factor

0.98


Number of +12V rail(s)

4


Combined power (+3.3V)
0 W


Combined power (+12V)

996 W


Combined power (+5V)
0 W


Max output current (+3.3V)

25 A


Max output current (+12V1)

33 A


Max output current (+12V2)

33 A


Max output current (+12V3)

40 A


Max output current (+12V4)

40 A


Max output current (+5V)

24 A


Max output current (-12V)

0.5 A


Max output current (+5Vsb)

3 A


Hold time
.1 ms


Efficiency

93.8%


Power protection features

Features that protect the device against power problems e.g. overload.

Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage


Ports & interfaces


Motherboard power connector

The way in which the motherboard is connected to the power supply.
+4 pin ATX


Motherboard power cable length

60 cm


SATA power cable length

600, 750, 900, 1050 mm


Number of SATA power cables



Peripheral (Molex) power connectors (4-pin)

White 4-pinned connector used to connect a peripheral to the power supply.

2


Peripheral (Molex) power cable length

900, 1050 mm


EPS power connector (8-pin)




EPS power connector (4+4 pin)




PCI Express power connectors (6+2 pin)

4


PCI Express power connectors (12-pin)

1


PCI Express power cable length

60 cm


CPU power connector (4+4 pin)




CPU power cable length

70 cm


ATX power connector (20+4 pin)




PCI Express connector




Cabling type

Fully-Modular



Performance


80 PLUS certification

80 PLUS Titanium


Purpose

What the product is used for.

PC


Power supply unit (PSU) form factor

ATX


ATX version

ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3.

3.1


EPS version

2.92


Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).
.2 dB


Bearing technology

FDB


Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
0000 h


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Cooling type

The method used to cool the device or to cool the air around the device.

Active


Fan diameter

The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
.5 cm


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)


Fan speed

0 - 2100 RPM


On/off switch

The button which is pressed to switch the device on or off.




On/off fan switch




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Certificates


Compliance certificates

CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus


Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.
5 mm


Height

The measurement of the product from head to foot or from base to top.

86 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.2 kg


Packaging data


Manual




Manual languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian


Package width

The distance from one side of the packaging to the other.

230 mm


Package depth

The distance from the front to the back of the packaging.
6 mm


Package height

The distance from the top to the bottom of the packaging.

355 mm


Package weight

Weight of the packaged product.

3.5 kg


Technical details


Sustainability certificates

ENERGY STAR, ErP, Triman


Logistics data


Shipping (inner) case length

52.8 cm


Shipping (inner) case width

36.8 cm


Shipping (inner) case height

26 cm


Shipping (inner) case net weight
.3 kg


Products per shipping (inner) case

4 pc(s)


Other features


Screws included




Cable ties included
