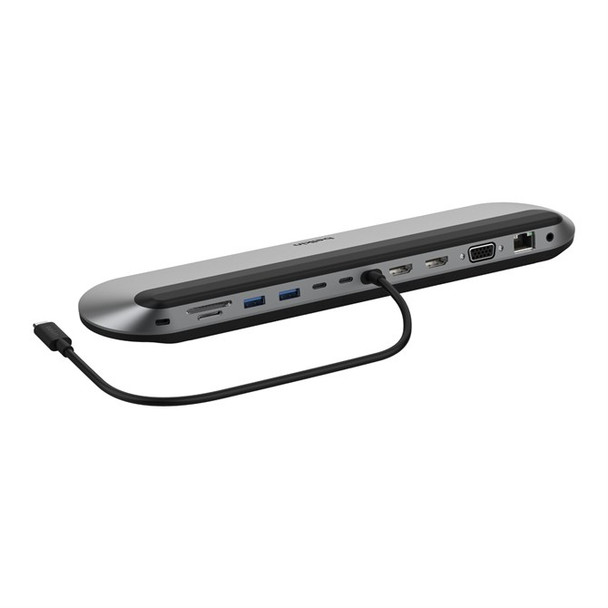

Belkin INC014BTSGY Laptop Dock/port Replicator Wired USB 3.2 Gen 2 3.1 Gen 2 Typ INC014BTSGY

The Universal USB-C 11-in-1 Pro Dock adds power and productivity to your setup with Silicon Motion technology, Mac, Windows, and Chromebook compatibility, and expansion up to 3 monitors. Get more done with 10Gbps transfer speeds and up to 100W of PD.

Plug into more ports.
Added key ports that newer laptops don-t support expand your power to connect - all through one cable.

Laptop stand adds functionality.
This docking station doubles as a laptop stand with centered USB-C cord that makes placement convenient and hassle-free.

Ready to plug and play.
With Silicon Motion Technology, this dock is built to plug and play right out of the box.

Create with up to 3 displays.
Extend your screens to 3 monitors with resolution up to 4K at 60Hz for one monitor.

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

2


USB Power Delivery (USB PD)




USB Power Delivery up to
0 W


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


VGA (D-Sub) ports quantity

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1


Combo headphone/mic port




Headphone outputs

Number of sockets /ports where headphones are connected.

1


Headphone connectivity

How headphones connect to a device e.g. wirelessly or via a cable and connector.

3.5 mm


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.

2500 Mbit/s


Performance


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Compatible memory cards

Types of memory cards which can be used with this product.

MicroSD (TransFlash), SD


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
Gbit/s


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Number of displays supported

The number of displays that can be used with this product.

3



Performance


Maximum refresh rate

60 Hz


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black, Grey


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Charging function




Power


Power source type

What the power source is.

USB


Power connector

USB Type-C


USB cable length

0.35 m


Software


Windows operating systems supported

Windows vesions wich can be used with the device.




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Other operating systems supported

ChromeOS


Weight & dimensions


Width

The measurement or extent of something from side to side.

88.9 mm


Depth

The distance from the front to the back of something.

259 mm


Height

The measurement of the product from head to foot or from base to top.

22.8 mm


Packaging data


Quantity per pack

1 pc(s)
