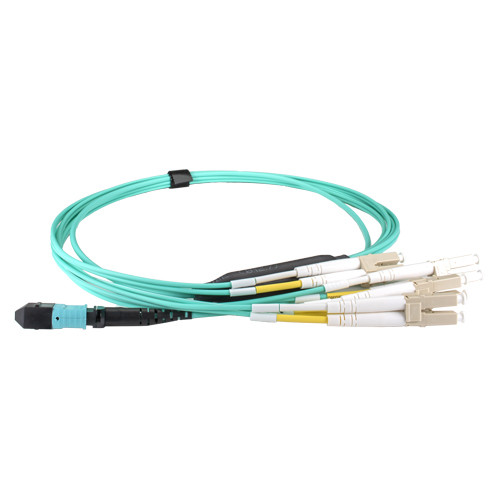

Cablenet 3m OM4 BASE-12 MPO Female to 4 x LC DX Breakout Aqua CPR Cable Method B MPO-12BO4LC3

This 3m OM4 BASE-12 MPO female to 4 x LC duplex breakout cable delivers a precision terminated multimode fibre assembly developed for environments that require flexible routing distance, stable signal performance, and efficient deployment in high density optical infrastructures. Constructed with OM4 50/125 micron fibre, it supports elevated bandwidth for short reach parallel-optics and QSFP platforms operating at 40G and 100G within enterprise and colocation data centres. The BASE-12 MPO female connector consolidates twelve fibres in a single compact ferrule, simplifying backbone deployment and reducing congestion across tray, cabinet, and containment systems compared with multiple duplex leads. Each fanout leg terminates in LC duplex connectors, supporting ordered equipment-side patching to switches, servers, and distribution panels while preserving airflow, improving operational access, and maintaining predictable low-loss optical performance across mission-critical links in modular fibre pathways.

This 3m breakout harness follows Method B polarity to maintain correct lane mapping across parallel channels, supporting consistent installation practice and error-free commissioning during expansions or reconfiguration events across structured cabling zones. The CPR Cca certification confirms suitability for public-sector and commercial buildings that require enhanced reaction-to-fire performance and low smoke characteristics under European safety standards. An aqua jacket provides rapid OM4 identification and simplifies maintenance, labelling, and asset-tracking tasks across multi-service network environments. Factory termination delivers stable insertion-loss levels, removes field termination variables, and supports streamlined deployment across ToR, MoR, and EoR architectures utilising pre-terminated trunks and high-density modular fibre management systems in evolving data centre facilities.


View More





Vendor

Cablenet


MPN

MPO-12BO4LC3


EAN

5056750327169


Weight

0.240000


Fibre Optic Type

OM4 (50/125)


Connector 1

MPO


Connector 2

LC Duplex


Cable Length

3m


Cable Colour

Aqua


Core Diameter

50 micron


Cladding Diameter
5 micron


Fiber Mode Structure

Multimode


Quantity Per Pack

1 pc(s)


Cable Type

Multimode Fibre


Cable Standard

OM4 (50/125)


Piece Qty

1


Piece Gross Weight

0.24 KG


Piece Height (mm)

240


Piece Length (mm)

240


Piece Width (mm)



Connection Type

Networking


Connector 1

MPO Female


Connector 2

LC Duplex Male
