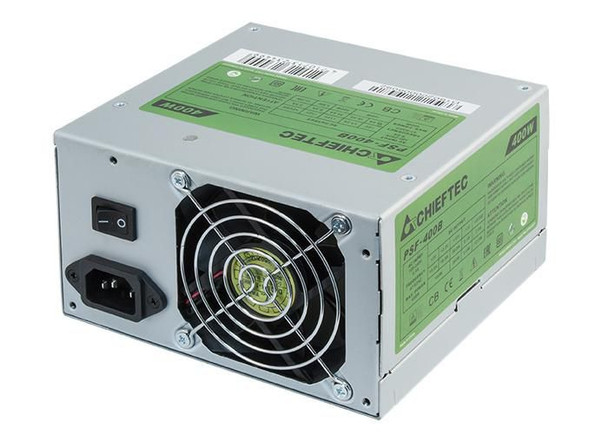

Chieftec PSF-400B Power Supply Unit 400 W PSF-400B

The PSF-400B from its layout may remind on �fore gone� ATX standards but, compatible with all current standards and certified by T�V amongst many others and with a fixed voltage of 230V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.

Dedicated majorly to the 19� IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.

Design



Cooling type



Active


Fan diameter



8 cm


Fan location



Side


Number of fans



1 fan(s)


Product colour



Metallic


Logistics data



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Bronze


ATX version



2.3


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



EPS power connector (8-pin)



Yes


Floppy drive power connector



1


Motherboard power cable length



45 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



4


PCI Express power connectors (6-pin)



1


Peripheral (Molex) power connectors (4-pin)



3


Power



AC input frequency



47 - 63 Hz


AC input voltage



100 - 240 V


Combined power (-12V)



3.6 Watt


Combined power (+12V)



360 Watt


Combined power (+3.3V)



100 Watt


Combined power (+5V)



100 Watt


Combined power (+5Vsb)



12.5 Watt


Efficiency



87 %


Max output current (-12V)



0.3 A


Max output current (+12V1)



30 A


Max output current (+3.3V)



16 A


Max output current (+5V)



15 A


Max output current (+5Vsb)



2.5 A


Power Factor Correction (PFC) type



Active


Power protection features



Overload, Short circuit


Total power



400 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



14 cm


Product Height



8.7 cm


Product Width



15 cm


Technical details



Sustainability certificates



RoHS, ENERGY STAR


Vendor information



Brand Name


Chieftec


Warranty



1 Year(s)
