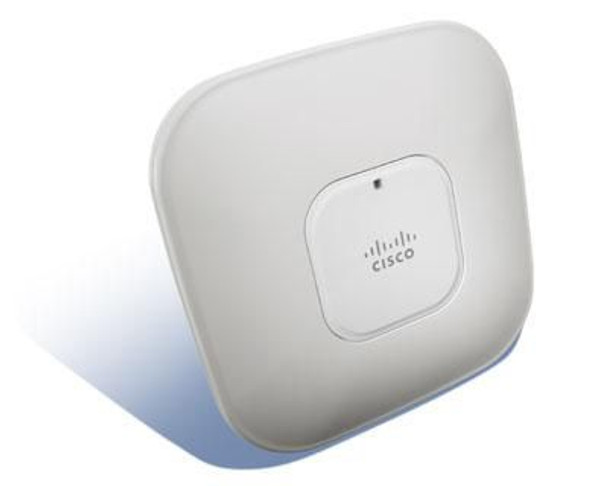

Cisco AIR-LAP1142N-E-K9-RFB Aironet 1140 Series Acc. Point AIR-LAP1142N-E-K9-RFB

The Cisco� Aironet� 1140 Series Access Point is a business-ready, indoor access point designed for simple deployment and energy efficiency. The 1140 Series is a dual-band, 802.11n access point with integrated antennas. It may also be ordered with a single-band 802.11g/n (2.4-GHz) radio for use in regulatory domains that do not allow 802.11a (5-GHz) operation.

The Cisco Aironet 1140 Series ships with the following:- Access point
- Cisco Lightweight Access Point Protocol (LWAPP)1 software
- Mounting plate, security hasp, pair of ceiling-tile clips, and hardware accessory package
- Documentation CD
The Cisco Aironet 1140 Series is available in several stock keeping units (SKUs), each of which identifies a particular regulatory domain (Tables 1 and 2). Each version provides a unique combination of channel and power settings that are compliant with local government regulations.

Lightweight Acces Points (LAP) cannot function independent of Wireless Lan Controllers(WLC). LAPs function in conjunction with a WLC only. The reason is that the WLC provides all the configuration parameters and firmware that the LAP needs in the registration process.

Design



Internal



No


Features



2.4 GHz



Yes


5 GHz



Yes


Frequency band



2.4, 5 GHz


Maximum data transfer rate



54 Mbit/s


Other features



Wireless technology



802.11a/g/n


Package dimensions



Gross Weight (Package, kg)



2 kg


Performance



Flash memory



32 MB


Internal memory



128 MB


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Interface



10/100/1000 Base-T


Product dimensions



Net Weight (Product, kg)



1 kg


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



221 x 221 x 47 mm
