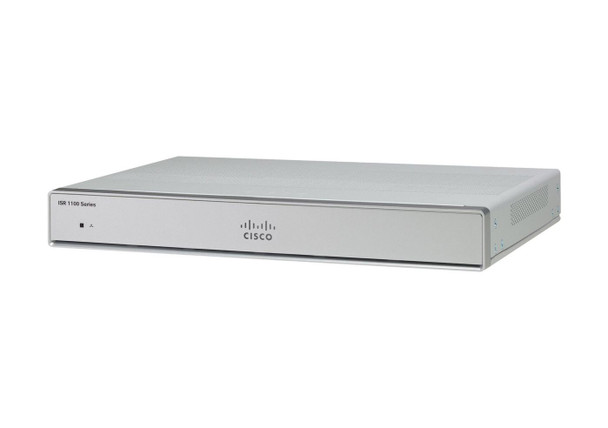

Cisco C1111X-8P Wired Router Gigabit Ethernet C1111X-8P

Cisco� 1100 Series Integrated Services Routers (ISRs) with Cisco IOS� XE Software combine Internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, high-performance device. The routers are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities.

The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.

Note: Not all 1100 series SKU variants are available in every region with different technologies (check on CCW pricelist for your region).

Antenna



Antenna type



External


Antennas quantity



2


Detachable antenna(s)



Yes


Design



LED indicators



Link, Status


Product colour



Grey


Wall mountable



Yes


DSL features



ADSL



Yes


ADSL2



Yes


Features



Certification



UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2


Flash memory



4000 MB


Internal memory



4000 MB


Internal memory type



DRAM


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Web-based management



Yes


Mobile network



Mobile network generation



4G


Short Message Service (SMS)



Yes


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Frequency range



2.4 - 5 GHz


Multicast support



Yes


Networking standards



IEEE 802.1Q, IEEE 802.1ag


Port forwarding



Yes


Static route



Yes


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 4570 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



32 - 104 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-4 - 149 �C


Package dimensions



Gross Weight (Package, kg)



3.37 kg


Packaging data



AC adapter included



Yes


Manual



Yes


Quick start guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



8


Fast Ethernet (copper) ports quantity



1


Gigabit Ethernet (copper) ports quantity



8


Installed SFP modules quantity



4


Power over Ethernet (PoE) ports quantity



6


USB ports quantity



1


USB version



3.2 Gen 1 (3.1 Gen 1)


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Output voltage



12 V


Power consumption (typical)



66 Watt


Power over Ethernet (PoE)



Yes


Power source type



AC, PoE


Product dimensions



Net Weight (Product, kg)



2.59 kg


Product Depth



24.4 cm


Product Height



4.4 cm


Product Width



32.3 cm


Protocols



Data link protocols



HDLC


DHCP client



Yes


DHCP server



Yes


IPv4 & IPv6 features



Dual stack IPv4/IPv6


Management protocols



IGMPv3


Routing protocols



VRRP


Supported network protocols



ACL, NAT, QoS, BFD, VRF Lite, IP SLA


Supported protocols



IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD


Switching protocols



RFC 2338


Security



Access Control List (ACL)



Yes


Authentication method



RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512


Firewall



Yes


Network address translation (NAT)



Yes


Security algorithms



3DES, 128-bit AES, 256-bit AES, DES


Vendor information



Brand Name


Cisco


Warranty



1 Year(s)


WAN connection



3G/4G USB modem compatibility



Yes


DSL WAN



No


Ethernet WAN



Yes


SIM card slot



No
