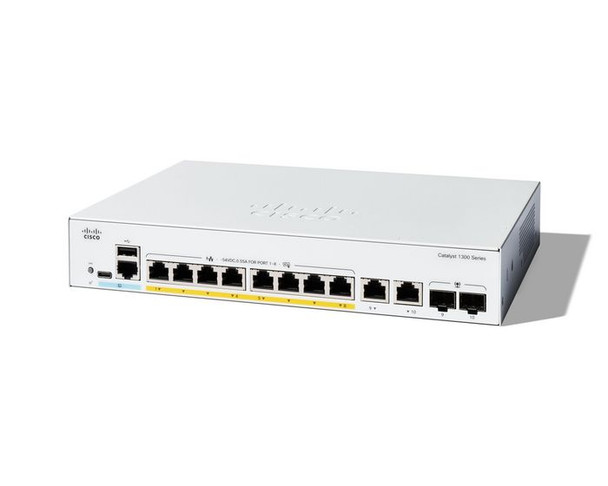

Cisco C1300-8P-E-2G Catalyst 1300 Managed L2 C1300-8P-E-2G
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- C1300-8P-E-2G
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Cisco Catalyst 1300-8P-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Data transmission
Forwarding rate
14.88 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
16000 entries
Number of static routes
990
Packet buffer memory
1.5 MB
Static route
Yes
Switching capacity
20 Gbit/s
Design
LED indicators
Y, Yes
Product colour
Grey
Rack mounting
Yes
Management features
Configuring Location Settings (CLI)
Yes
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs
4093
Port mirroring
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Heat dissipation
275.91 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-5 - 50 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-25 - 70 �C
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
Package dimensions
Depth (package,cm)
54.48 cm
Gross Weight (Package, kg)
1.3 kg
Height (package,cm)
10.39 cm
Width (package,cm)
29.9 cm
Performance
Mean time between failures (MTBF)
1706649 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Console port
RJ-45/USB Type-C
Power
AC input frequency
50/60 Hz
AC input voltage
110 - 220 V
Power consumption (max)
80.86 Watt
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
60 Watt
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
26.82 cm
Product Height
4.39 cm
Product Width
18.49 cm
Security
Access Control List (ACL)
Yes
Authentication
MAC-based authentication, Web-based authentication
Authentication type
RADIUS
DHCP features
DHCP Option 82, DHCP client, DHCP server
IGMP entries
2000
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
View AllClose
Data transmission
Forwarding rate
14.88 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
16000 entries
Number of static routes
990
Packet buffer memory
1.5 MB
Static route
Yes
Switching capacity
20 Gbit/s
Design
LED indicators
Y, Yes
Product colour
Grey
Rack mounting
Yes
Management features
Configuring Location Settings (CLI)
Yes
MIB support
Y
Quality of Service (QoS) support
Yes
Switch layer
L2
Switch type
Managed
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
Broadcast storm control
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs
4093
Port mirroring
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Operational conditions
Heat dissipation
275.91 BTU/h
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-5 - 50 �C
Storage relative humidity (H-H)
10 - 90 %
Storage temperature (T-T)
-25 - 70 �C
Other features
Packaging content
Switch, power cable, USB Type C cable and mounting hardware
Package dimensions
Depth (package,cm)
54.48 cm
Gross Weight (Package, kg)
1.3 kg
Height (package,cm)
10.39 cm
Width (package,cm)
29.9 cm
Performance
Mean time between failures (MTBF)
1706649 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Console port
RJ-45/USB Type-C
Power
AC input frequency
50/60 Hz
AC input voltage
110 - 220 V
Power consumption (max)
80.86 Watt
Power source
AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
60 Watt
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
26.82 cm
Product Height
4.39 cm
Product Width
18.49 cm
Security
Access Control List (ACL)
Yes
Authentication
MAC-based authentication, Web-based authentication
Authentication type
RADIUS
DHCP features
DHCP Option 82, DHCP client, DHCP server
IGMP entries
2000
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
