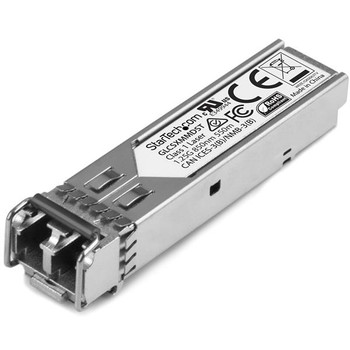

CISCO GLCSXMMD COMPATIBLE SFP TRAN GLCSXMMDST

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

The GLCSXMMDST is a Cisco GLC-SX-MMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco- brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech SFPs

All StarTech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech Advantage

Specs




Performance


SFP transceiver type

Fiber optic


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.
50 Mbit/s


Interface type

SFP


Multi-mode fiber (MMF) supported




Fiber optic connector

This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

LC


SFP transceiver standard

SX


Maximum transfer distance

The greatest distance over which the data/signal can be transferred.

550 m


Wavelength

The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.

850 nm


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3z


Duplex system

A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.

Full


Digital Diagnostics Monitoring (DDM)




Features


Product colour

The colour e.g. red, blue, green, black, white.

Silver


Housing material

What the casing of the product is made of.

Aluminium


Hot-swap




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

3381761 h


Power


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

1 W


Certificates


Compliance certificates

CE, RoHS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 85 -C



Operational conditions


Operating relative humidity (H-H)

5 - 95%


Weight & dimensions


Width

The measurement or extent of something from side to side.
.7 mm


Depth

The distance from the front to the back of something.

56.6 mm


Height

The measurement of the product from head to foot or from base to top.
.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
g


Packaging content


Quantity per pack

1 pc(s)


Packaging data


Package width

The distance from one side of the packaging to the other.
9 mm


Package depth

The distance from the front to the back of the packaging.

92 mm


Package height

The distance from the top to the bottom of the packaging.

32 mm


Package weight

Weight of the packaged product.

46 g


Logistics data


Master (outer) case width

350 mm


Master (outer) case length

408 mm


Harmonized System (HS) code

85369010


Master (outer) case height

340 mm


Products per master (outer) case
0 pc(s)


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China
