Cisco
Cisco MA-ANT-27 Ant-27 Network Antenna Sector MA-ANT-27
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- MA-ANT-27
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
Features
Antenna connector type
N-type
Antenna type
Sector antenna
Housing material
Plastic
Mounting
Wall/Pole
Product colour
White
Purpose
Indoor & outdoor
Ultraviolet (UV) resistant
Yes
Logistics data
Harmonized System (HS) code
85177100
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 70 °C
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Packaging content
Mounting kit
Yes
Package type
Box
Quantity per pack
1 pc(s)
Performance
Antenna gain (2.4 GHz)
9 dBi
Antenna gain (5 GHz)
12 dBi
Antenna gain level (max)
12 dBi
Frequency band
2.400 – 2.500, 5.150 – 5.875 GHz
Horizontal beam width
65 °
Vertical beam width
18 °
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
4.8 cm
Product Height
23 cm
Product Width
14 cm
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
View AllClose
Features
Antenna connector type
N-type
Antenna type
Sector antenna
Housing material
Plastic
Mounting
Wall/Pole
Product colour
White
Purpose
Indoor & outdoor
Ultraviolet (UV) resistant
Yes
Logistics data
Harmonized System (HS) code
85177100
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 70 °C
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Packaging content
Mounting kit
Yes
Package type
Box
Quantity per pack
1 pc(s)
Performance
Antenna gain (2.4 GHz)
9 dBi
Antenna gain (5 GHz)
12 dBi
Antenna gain level (max)
12 dBi
Frequency band
2.400 – 2.500, 5.150 – 5.875 GHz
Horizontal beam width
65 °
Vertical beam width
18 °
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
4.8 cm
Product Height
23 cm
Product Width
14 cm
Vendor information
Brand Name
Cisco
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
Related Products
Cisco MA-ANT-23 Ant-23 Network Antenna Sector MA-ANT-23
Cisco
£441.13
Designed for use with Cisco Meraki MR66 or MR72 2.4 GHz radios. The sector antenna can extend the range of a Cisco Meraki MR66 or MR72 device by focusing the wireless signal in a specific direction;...

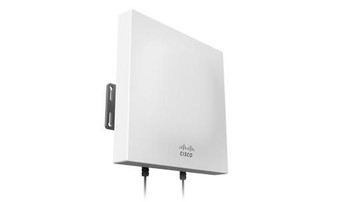

Cisco MA-ANT-25 Ant-25 Network Antenna Sector MA-ANT-25
Cisco
£408.64
Designed for use with Cisco Meraki MR66 or MR72 APs. The patch antenna can extend the range of a Cisco Meraki MR66 or MR72 device by focusing the wireless signal in a specific direction; the best way...

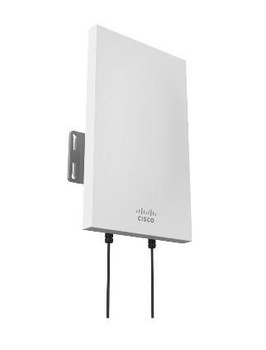

Cisco MA-ANT-21 Ant-21 Network Antenna Sector MA-ANT-21
